AT Inline 20-way Connector, Engine Side Connector End View

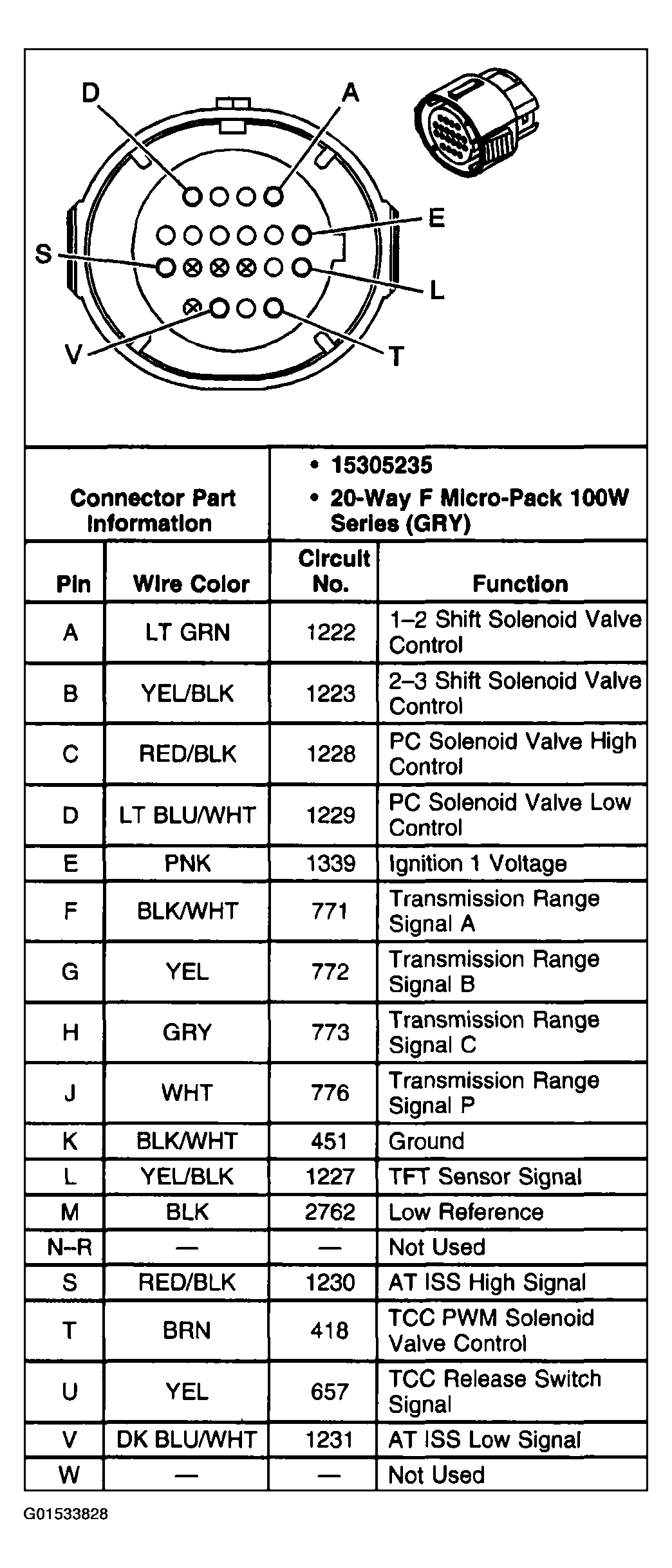

Fig 1: AT Inline 20-way Connector, Engine Side Connector End View

G01533828

Courtesy of GENERAL MOTORS CORP.
