Lifting & Jacking Vehicle: Important
The front hoist pads must not contact the rocker panels, the front fenders, the floor pan, or the stone guard moldings.

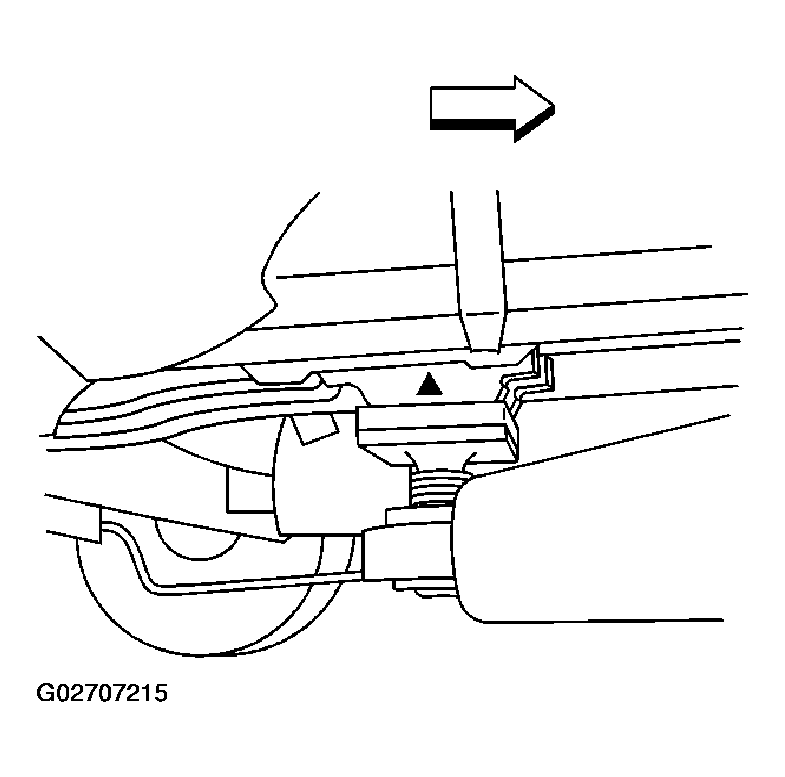

When lifting the vehicle with a frame-contact lift, place the front lift pads at the front longitudinal frame rails. These areas are identified on the vehicle with an equilateral triangle.
The rear hoist pads must not contact the rocker panels, the rear fenders, the floor pan, or the stone guard moldings.
When lifting the vehicle with a frame-contact lift, place the rear lift pads at the rear suspension trailing arm-to-body pivots. These areas are identified on the vehicle with an equilateral triangle.
