Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Install the lower control arm vertical bushing in the original position in order to maintain the original vehicle ride, handling and road feel.

  1. Align the flat edge of the bushing flange to the mark in the control arm (1). Ensure that the flat edge of the bushing flange is 30 degrees (2) from the centerline of the lower control arm. Ensure that the thin slot in the bushing is facing outboard.
  2. Insert the bushing into the control arm.

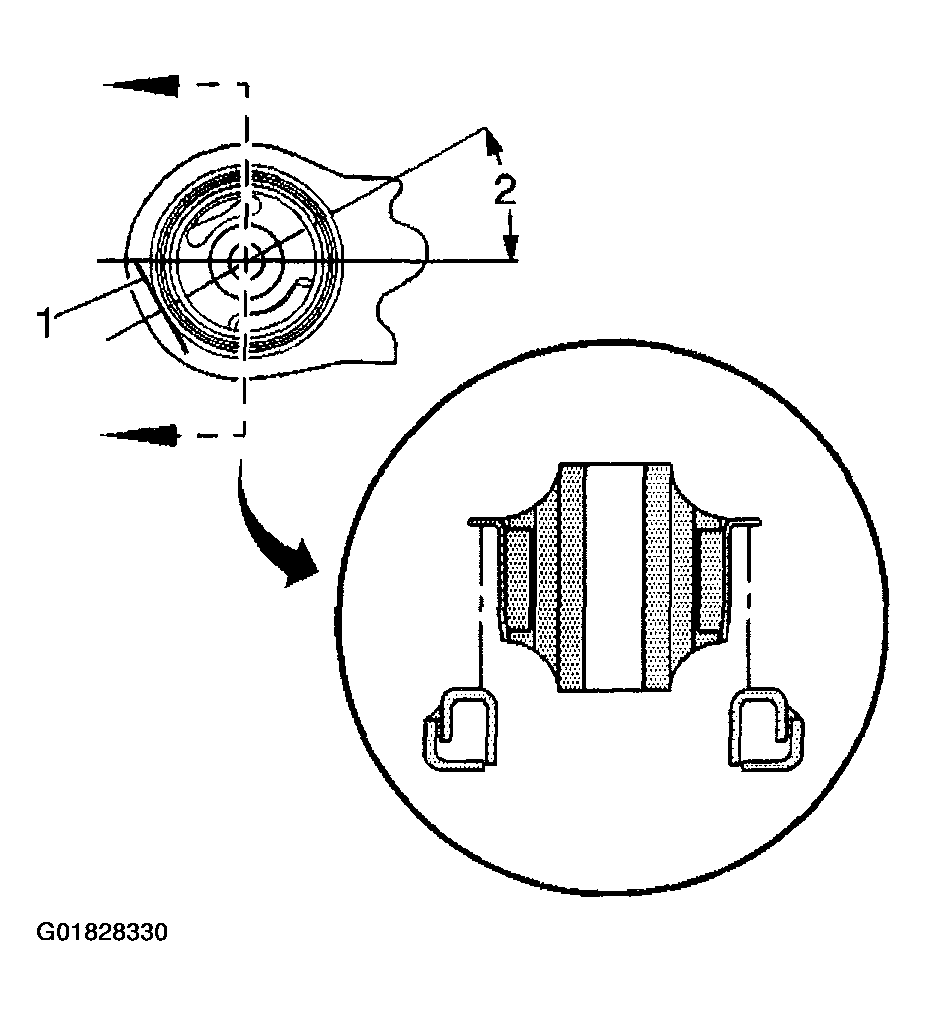

    Fig 1: Aligning Flat Edge Of Bushing Flange To Mark In Control Arm
    G01828330Courtesy of GENERAL MOTORS CORP.

    Important:  Apply J 23444-A  , or equivalent high pressure lubricant, to the threads of the J 21474-27  .

  3. Assemble the following bushing installation tools as shown:
    • J 21474-27  Puller Bolt
    • J 21474  Control Arm Bushing Installer
    • J 21474-5  Bushing Receiver
    • J 21474-4  Nut
  4. Tighten the J 21474-4  until the bushing is fully seated in the control arm.
  5. Disassemble the bushing installation tools.
  6. Install the lower control arm. Refer to Lower Control Arm Replacement .

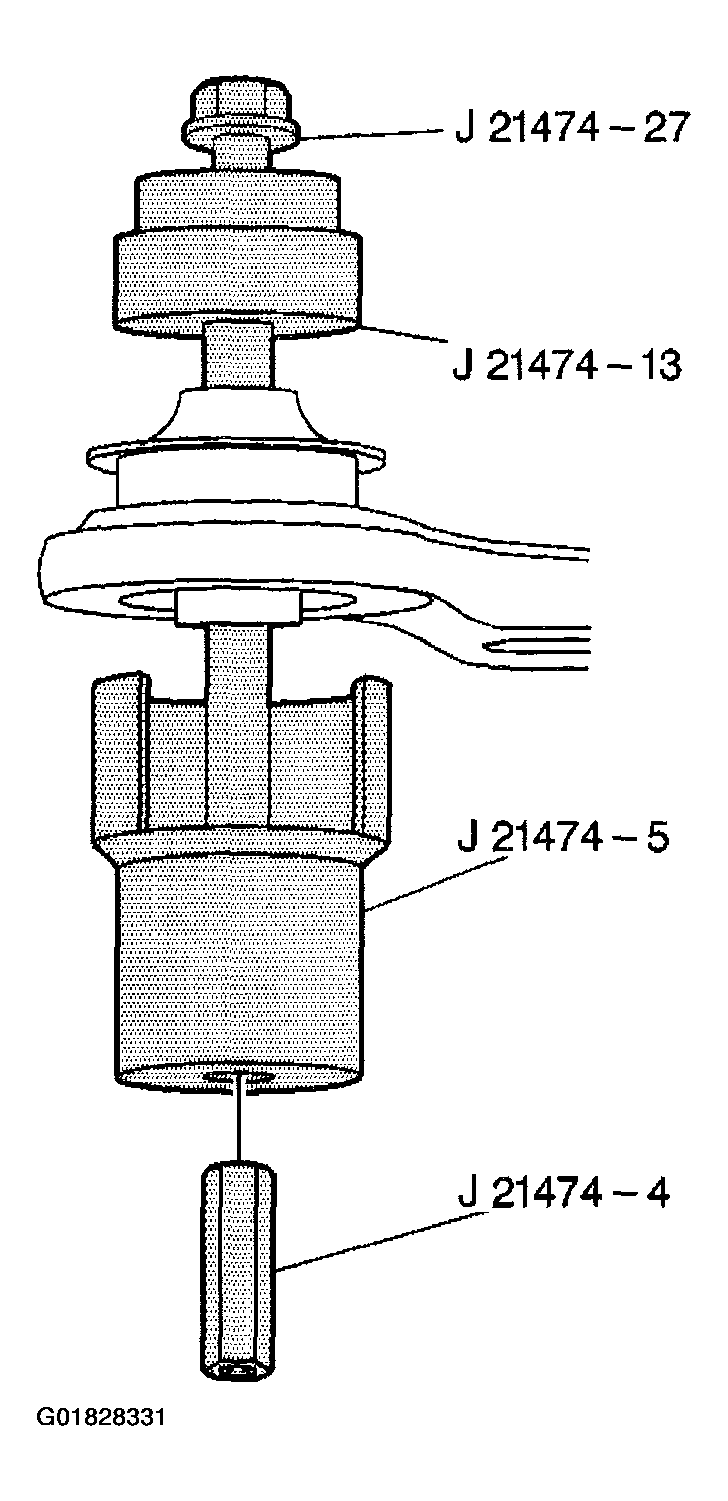

    Fig 2: Disassembling The Bushing Tools
    G01828331Courtesy of GENERAL MOTORS CORP.
