Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the VES console. Refer to Overhead Console - VES Replacement .
Put the DVD screen in a folded-down position.

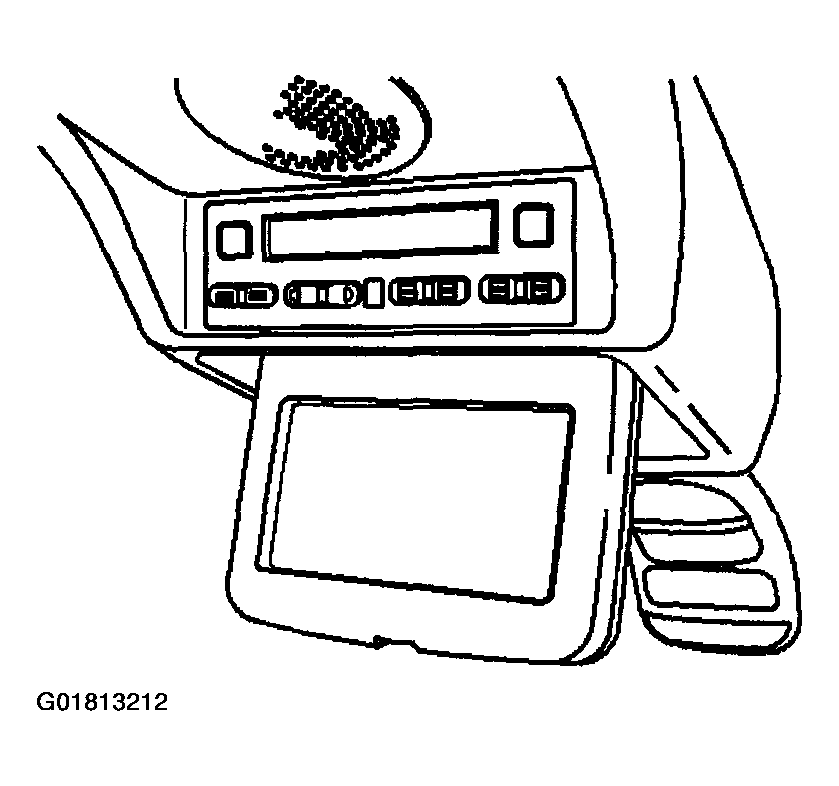

Fig 1: DVD Screen In Folded-Down Position
Courtesy of GENERAL MOTORS CORP.
Press the locking tabs in and slide the screen forward to remove tension from the spring.

Fig 2: Locking Tabs In & Slide Screen Forward
Courtesy of GENERAL MOTORS CORP.
Unhook the spring from the latch assembly.

Fig 3: Removing Spring From Latch Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the screen clip assembly.

Fig 4: Screen Clip Assembly
Courtesy of GENERAL MOTORS CORP.
