Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the speaker into the lock module.
  2. Connect the electrical connector.
  3. Install the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .

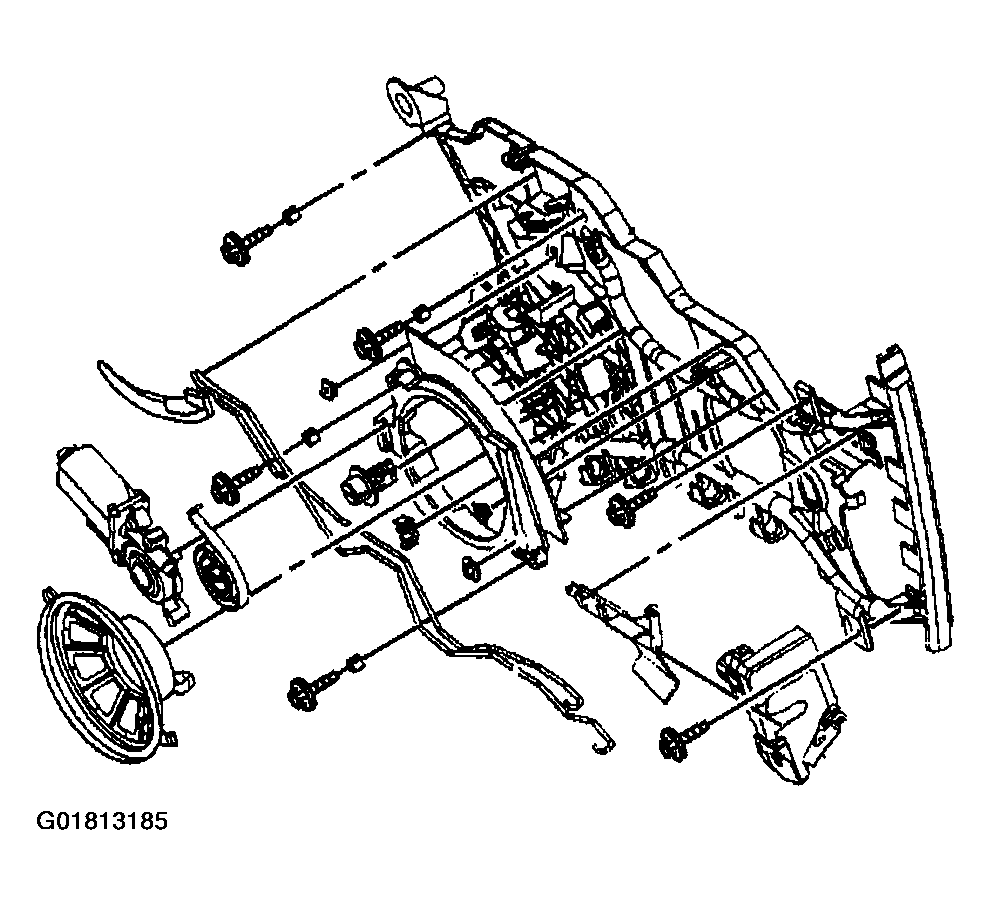

    Fig 1: Front Speaker & Bolts
    G01813185Courtesy of GENERAL MOTORS CORP.
