Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
  2. Remove the bolts/screws from the radio.
  3. Remove the radio from the center support bracket enough to access the connectors at the rear of the radio.

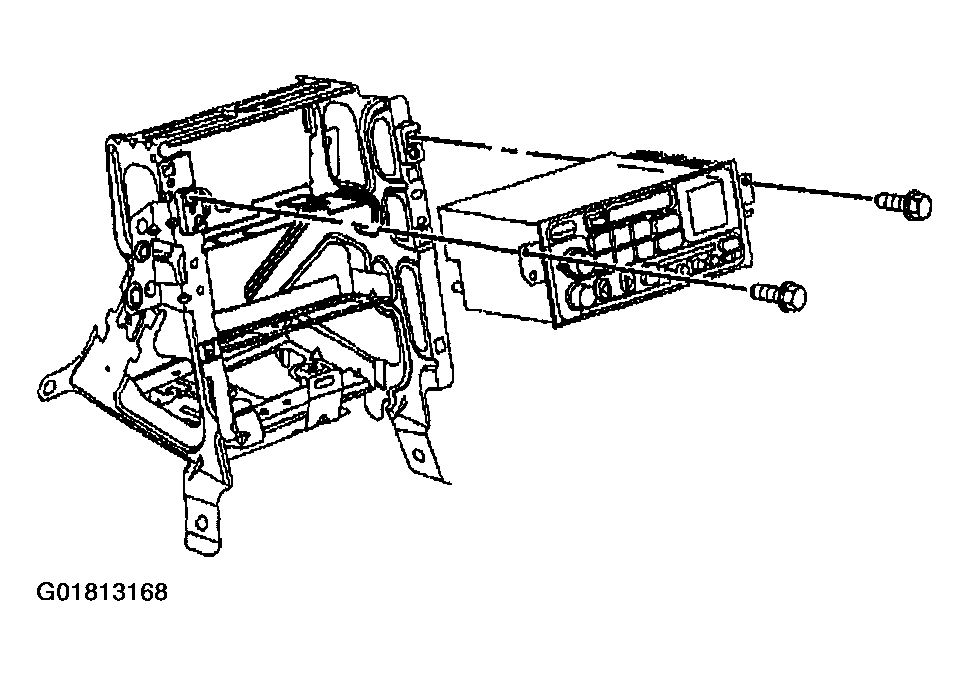

    Fig 1: Removing Bolts/Screws From Radio
    G01813168Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical/audio and antenna cable connectors from the radio.
  5. Pull straight out from the instrument panel in order to remove the radio.

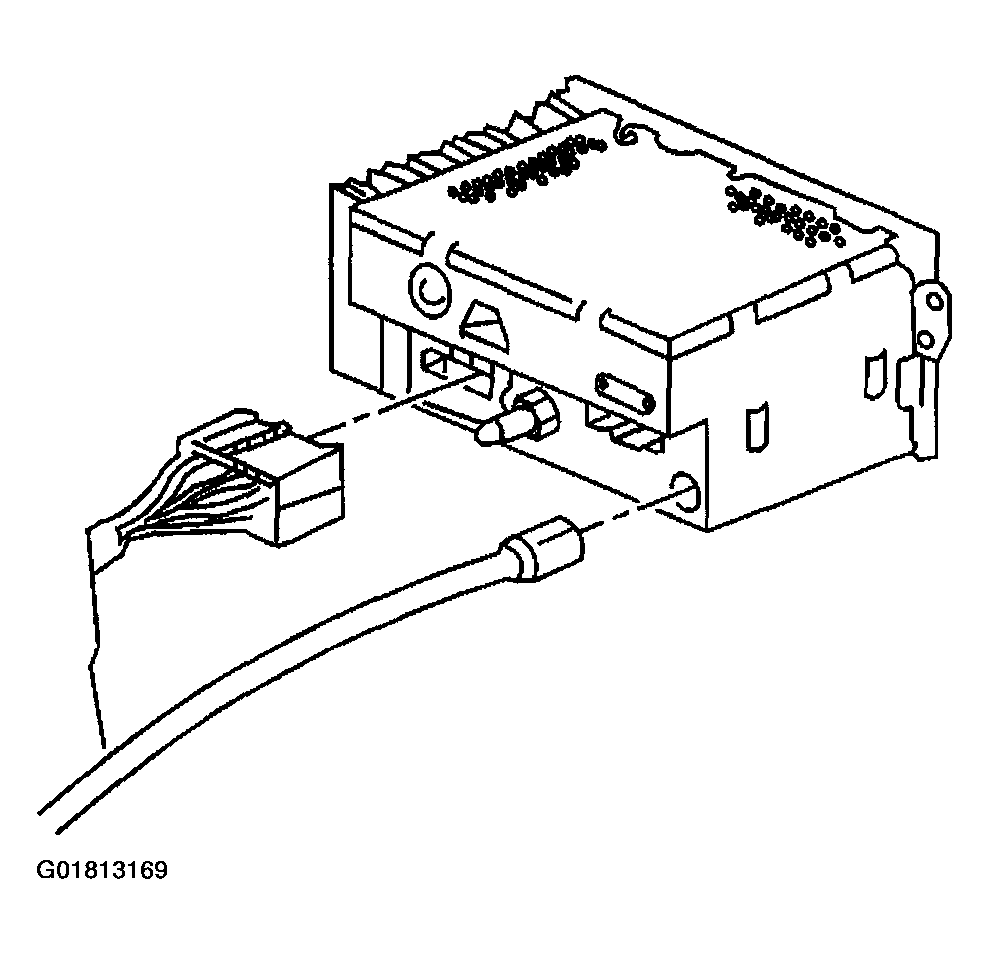

    Fig 2: Disconnecting Electrical/Audio & Antenna Cable Connectors
    G01813169Courtesy of GENERAL MOTORS CORP.
