Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the right inner fender.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the washer solvent container screws.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  3. Connect the rear washer pump hose if equipped.
  4. Connect the front washer pump hose.
  5. Connect the rear washer pump electrical connector if equipped.
  6. Connect the front washer pump electrical connector.
  7. Install the wiper motor electrical harness to the washer solvent container.
  8. Install the battery. Refer to BATTERY REPLACEMENT .
  9. Fill the washer solvent container with washer solvent.

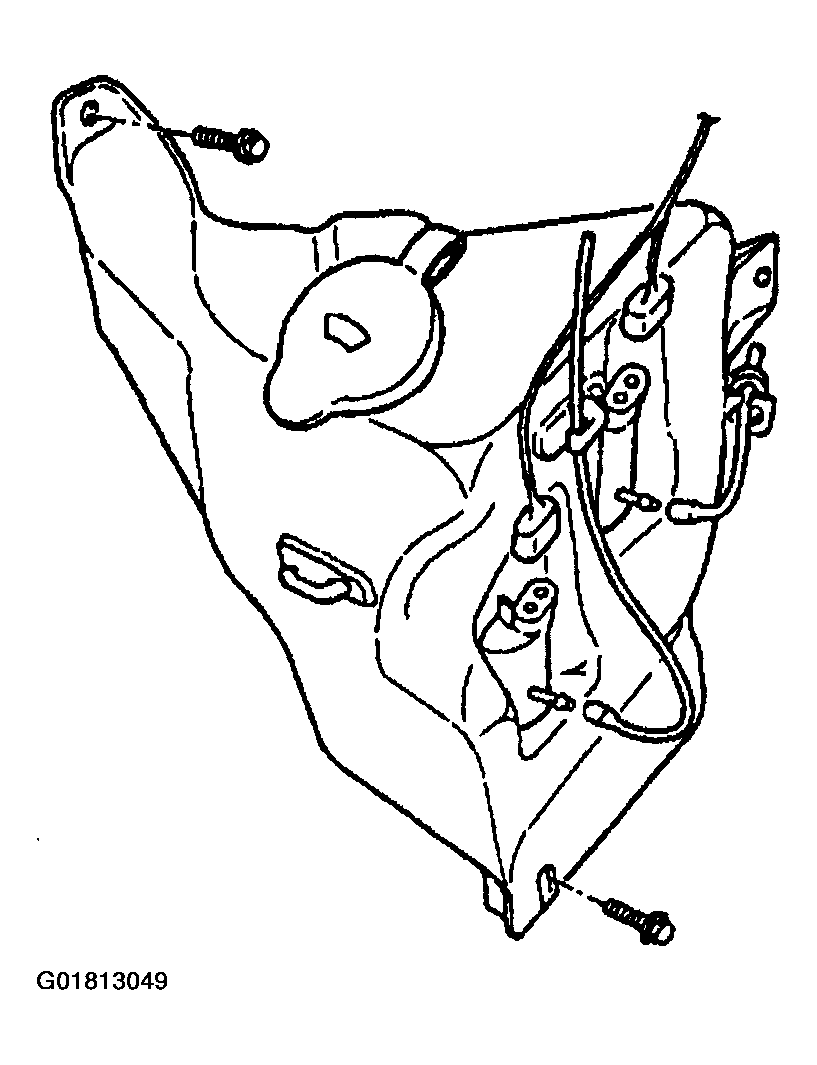

    Fig 1: Installing Washer Solvent Container & Screws
    G01813049Courtesy of GENERAL MOTORS CORP.
