Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the license lamp socket.
  2. Install the license lamp lens to the liftgate.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the license lamp lens.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

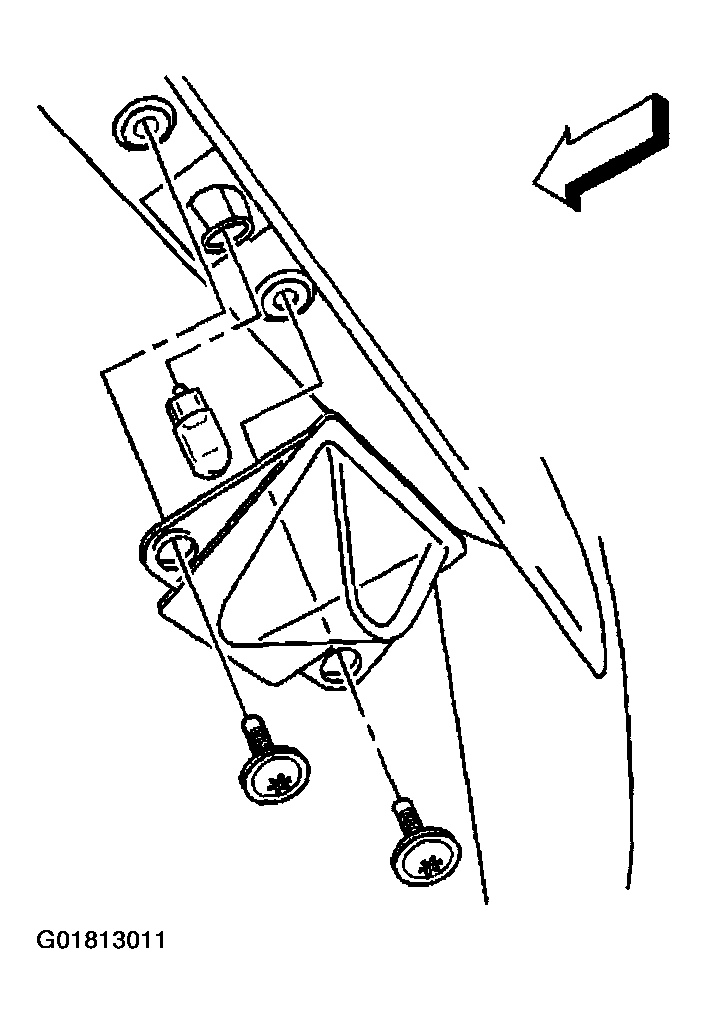

    Fig 1: Installing Screws & License Lamp Lens
    G01813011Courtesy of GENERAL MOTORS CORP.
