Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the bulb into the lamp socket.
  3. Apply pressure to the compartment lamp until the compartment lamp snaps in.
  4. Close the compartment door.

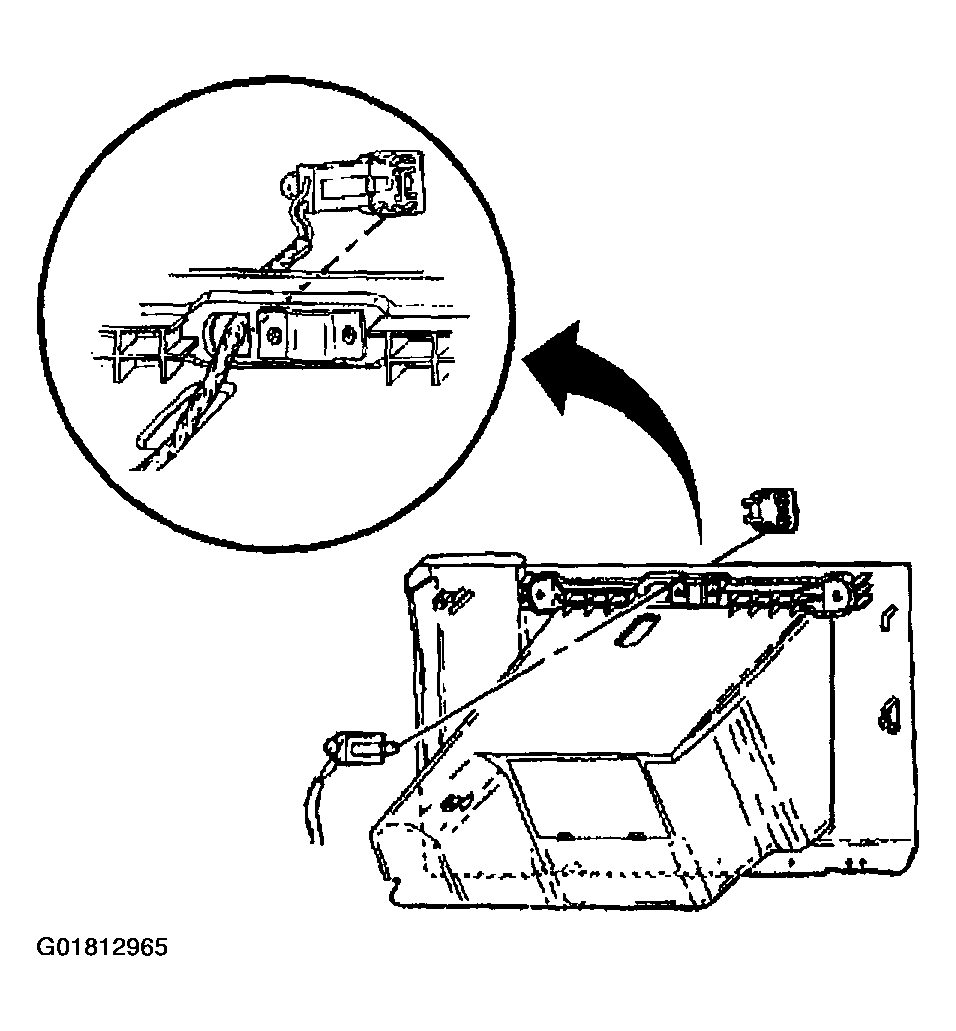

    Fig 1: Installing Bulb From Socket
    G01812965Courtesy of GENERAL MOTORS CORP.
