Removal Procedure

  1. Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  2. Remove the front door speaker. Refer to SPEAKER REPLACEMENT - FRONT .
  3. Remove the front door window run channel screws.

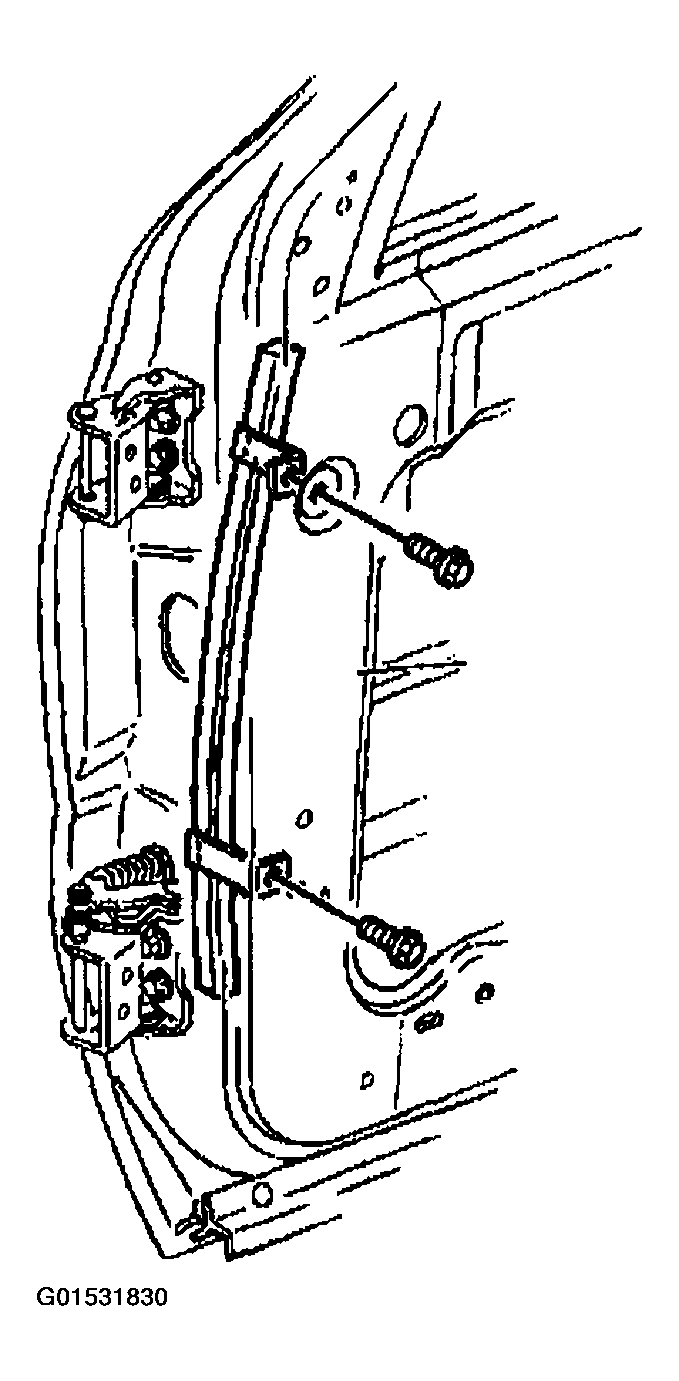

    Fig 1: Removing Front Door Window Run Channel Screws
    G01531830Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door window run channel from the front door window weatherstrip.
  5. Remove the front door window run channel from the front door.
    Fig 2: Removing Front Door Window Run Channel From Front Door Window Weatherstrip
    G01531831Courtesy of GENERAL MOTORS CORP.
