Removal Procedure

  1. Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR in Interior Trim.
  2. Use a small flat-bladed tool in order to remove the plugs from the swing-out window access hole on the sliding door.

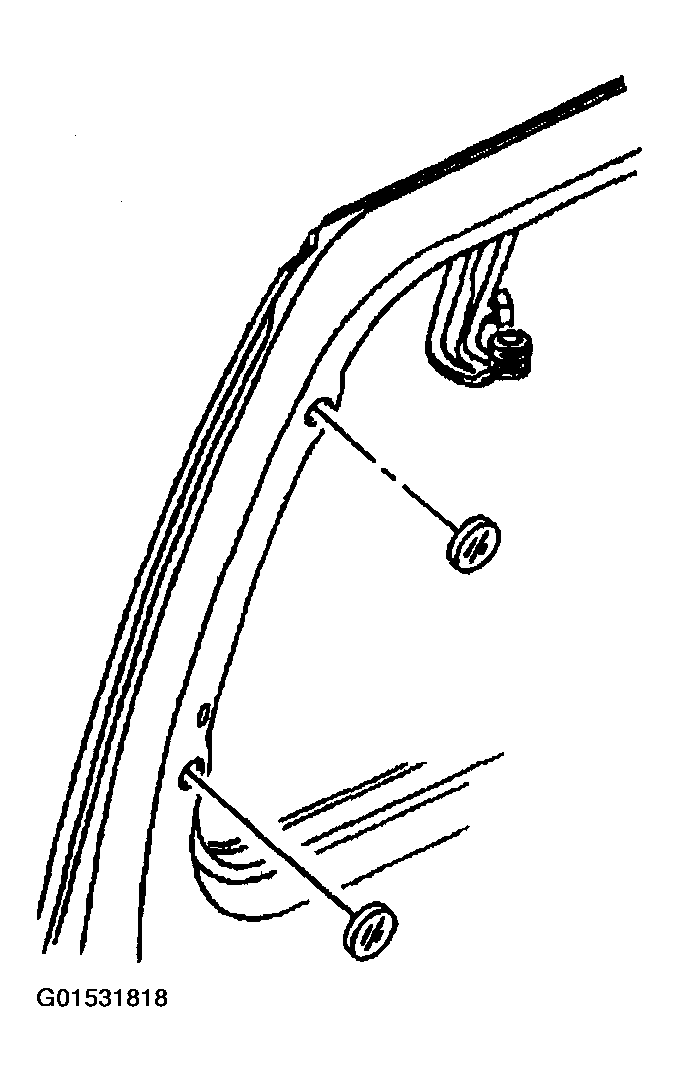

    Fig 1: Removing Plugs From Swing-Out Window Access Hole
    G01531818Courtesy of GENERAL MOTORS CORP.
  3. Remove the swing-out window latch screws.
  4. Remove the stud nuts from the swing-out window hinge.

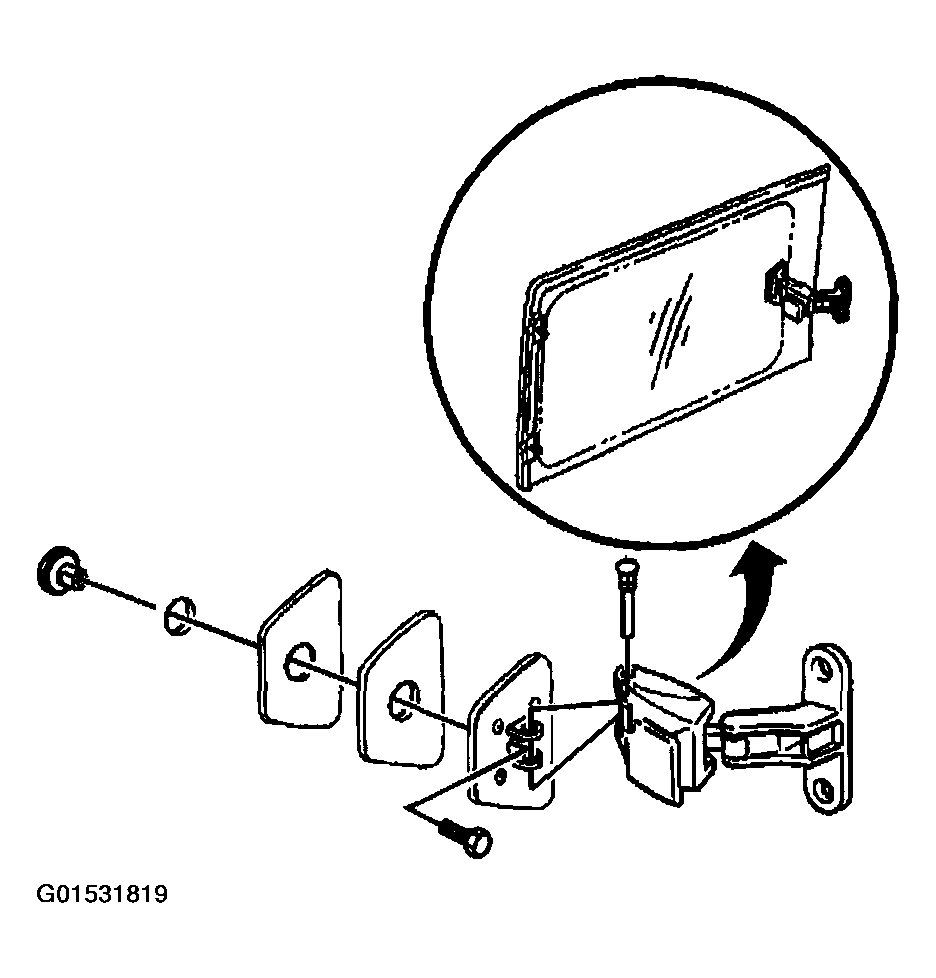

    Fig 2: Removing Stud Nuts From Swing-Out Window Hinge
    G01531819Courtesy of GENERAL MOTORS CORP.
  5. Remove the swing-out window from the sliding door.

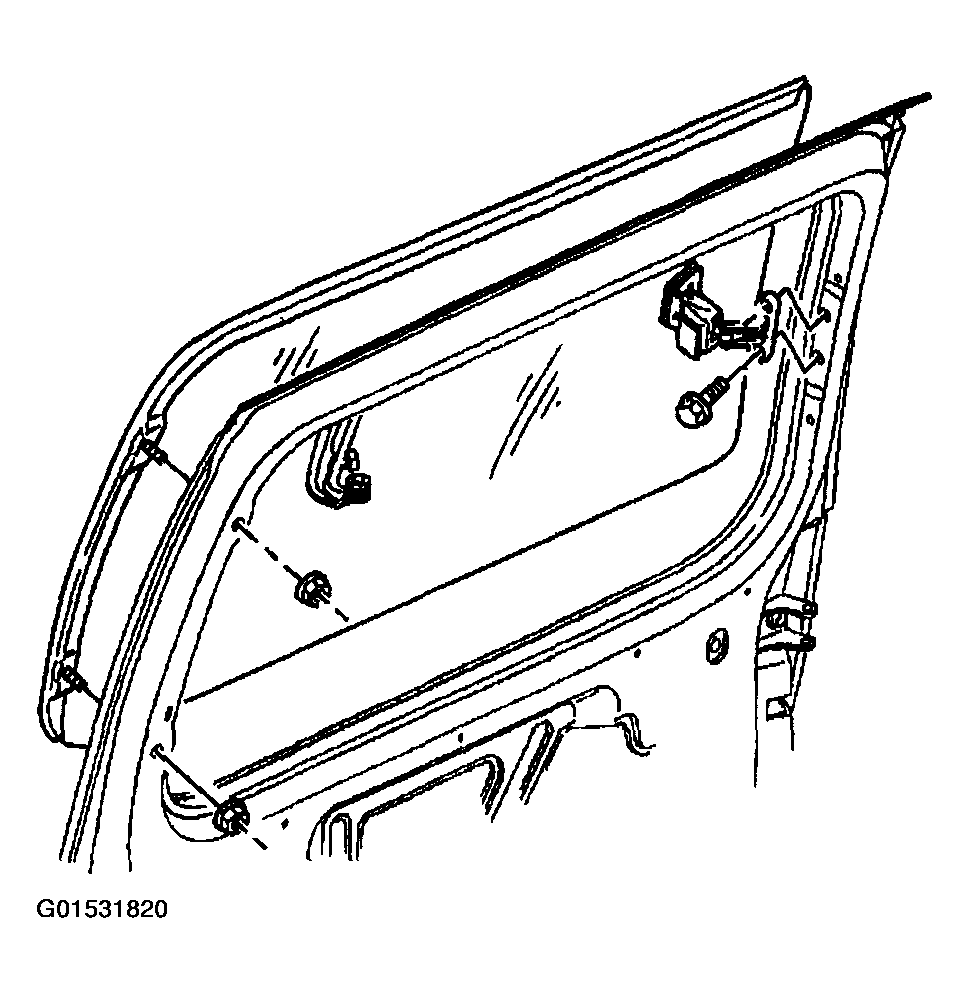

    Fig 3: Removing Swing-Out Window From Sliding Door
    G01531820Courtesy of GENERAL MOTORS CORP.
