Removal Procedure

  1. Remove the sliding door swing out window. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT INNER  .
  2. Pull the sliding door window weatherstrip from the pinch-weld flange.
  3. Remove the sliding door window weatherstrip from the sliding door.

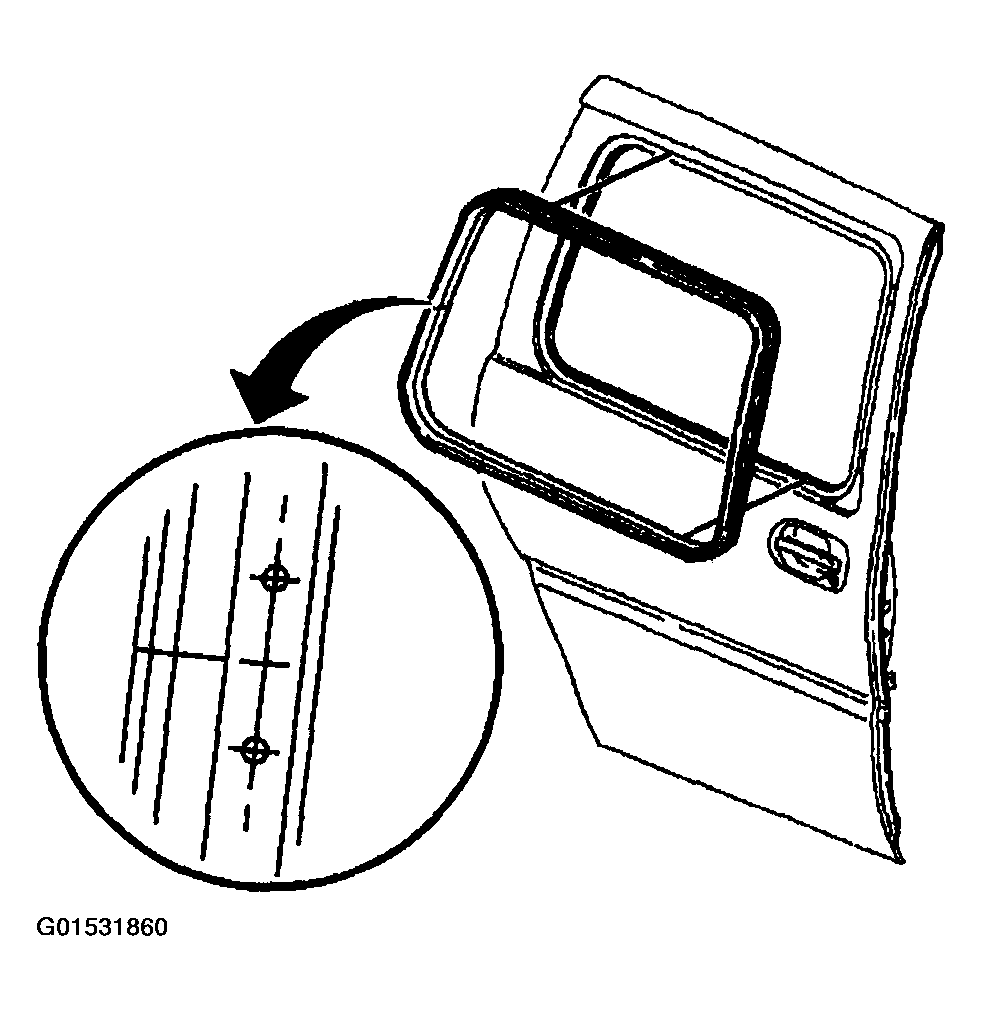

    Fig 1: Removing Sliding Door Window Weatherstrip
    G01531860Courtesy of GENERAL MOTORS CORP.
