Removal Procedure

  1. Remove the sliding door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the sliding door water deflector from the sliding inner door.

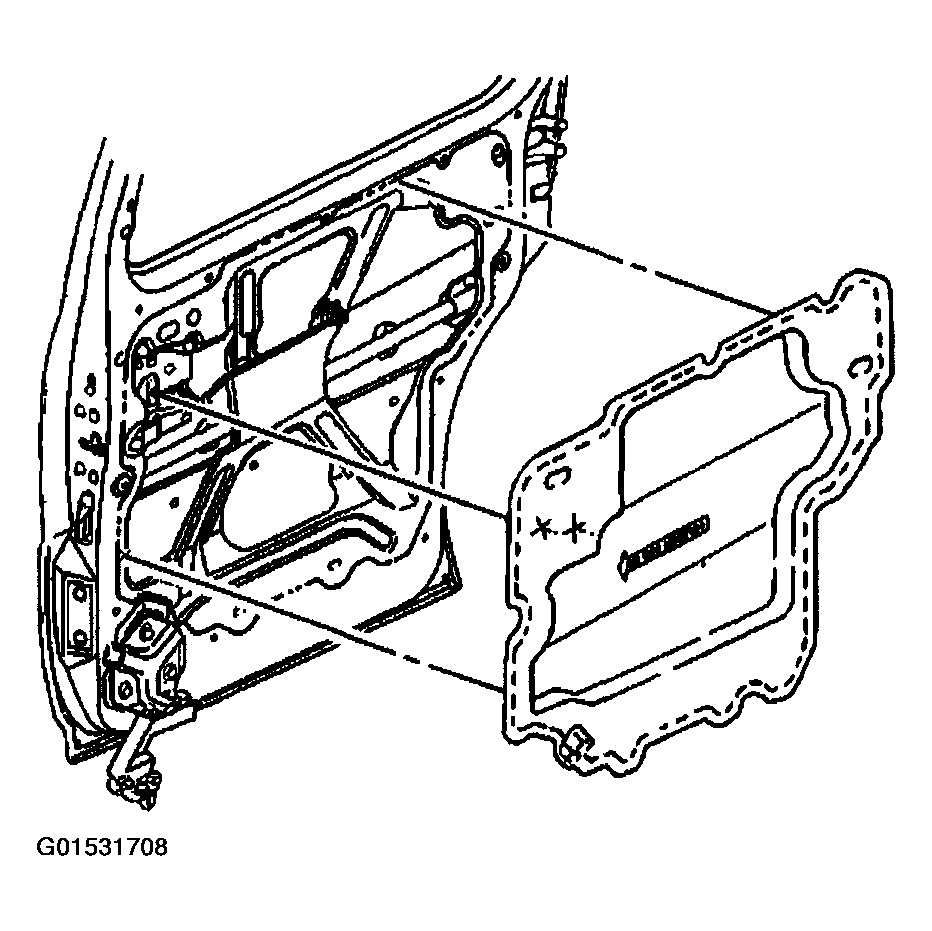

    Fig 1: Removing Sliding Door Water Deflector
    G01531708Courtesy of GENERAL MOTORS CORP.
