Removal Procedure

  1. Open the front door.
  2. Use J 38778  to remove the bottom auxiliary weatherstrip from the front door.

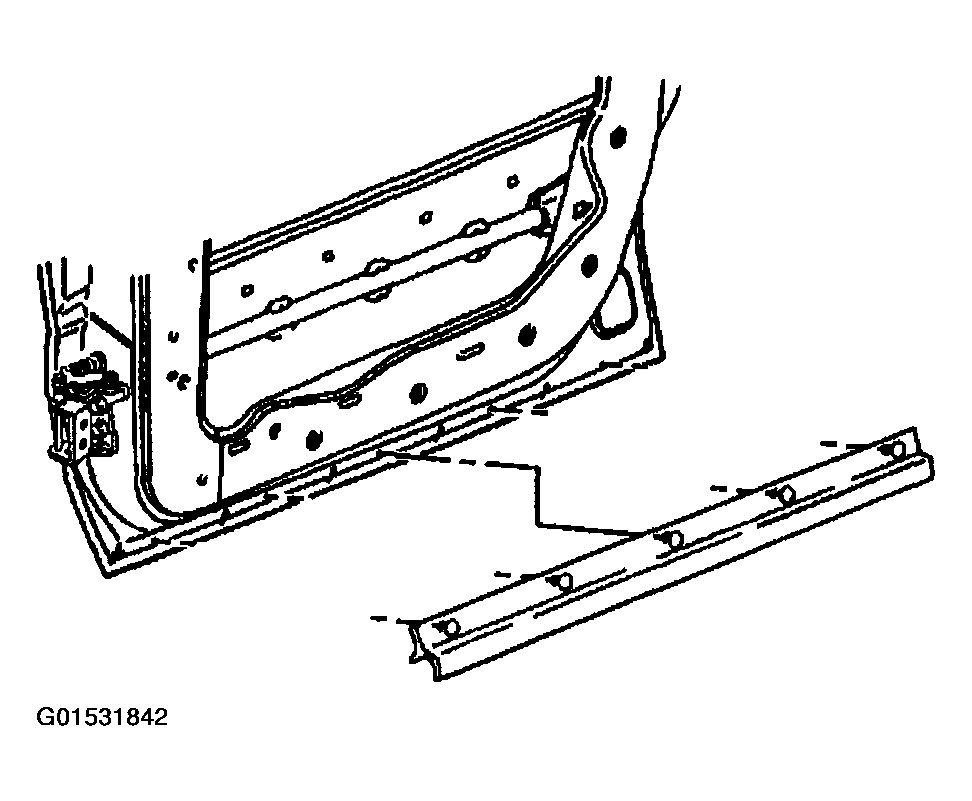

    Fig 1: Removing Bottom Auxiliary Weatherstrip
    G01531842Courtesy of GENERAL MOTORS CORP.
