Removal Procedure

  1. Open the front door.
  2. Disconnect the front door rubber conduit from the front door body side.
  3. Remove the front door electrical harness electrical connector through the opening in the front door body side pillar.
  4. Disconnect the front door electrical harness electrical connector.

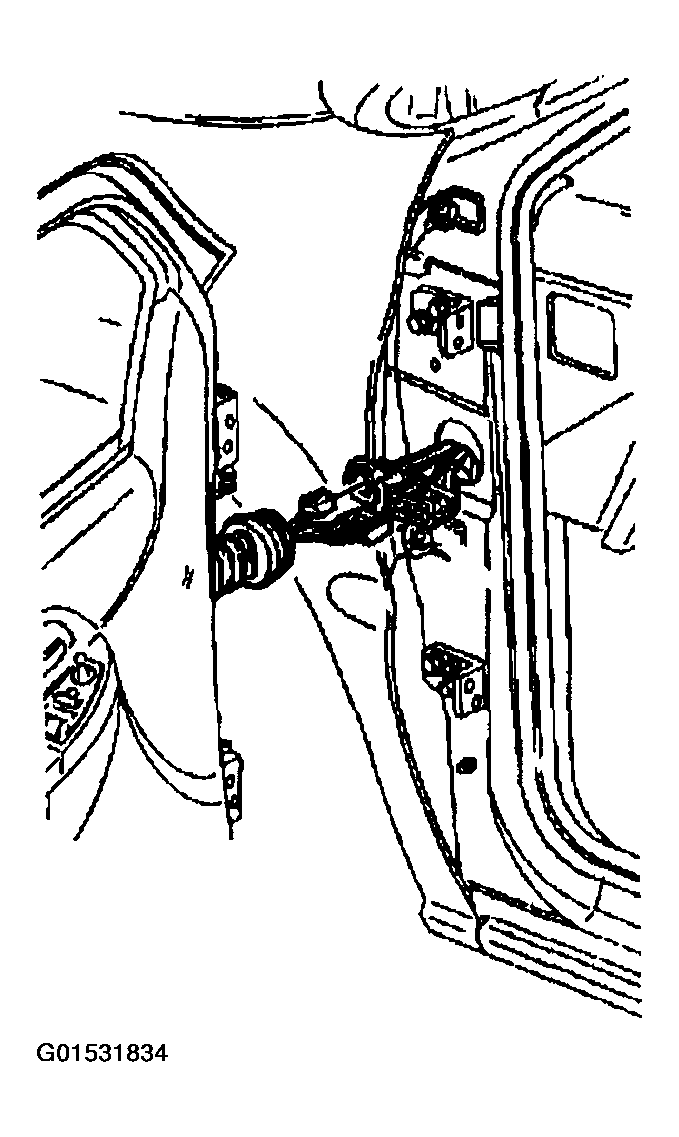

    Fig 1: Disconnecting Front Door Electrical Harness Electrical Connector
    G01531834Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the front door rubber conduit from the front door.
  6. Remove the front door rubber conduit from the front door electrical harness.

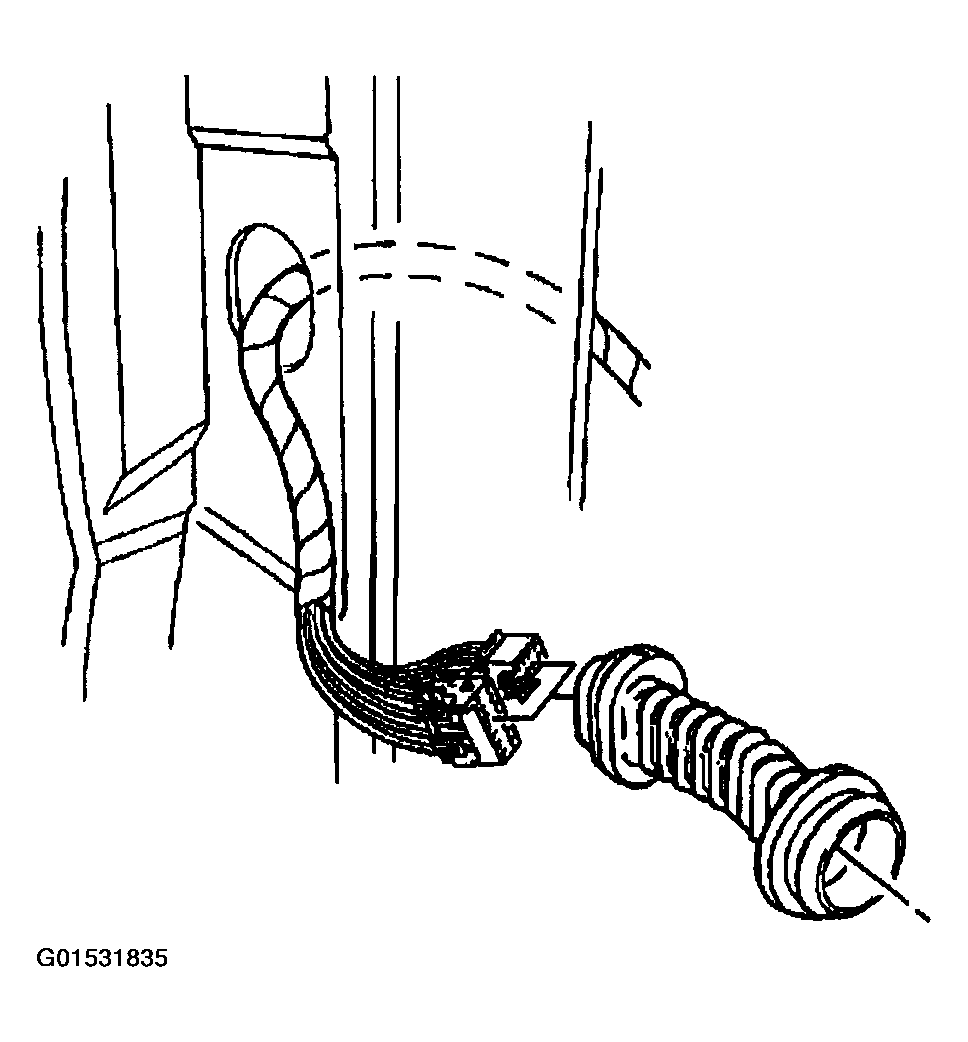

    Fig 2: Removing Front Door Rubber Conduit From Electrical Harness
    G01531835Courtesy of GENERAL MOTORS CORP.
