Removal Procedure

  1. Remove the sliding door garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SLIDING DOOR .
  2. Remove the headliner trim finish molding. Refer to HEADLINING TRIM FINISH MOLDING REPLACEMENT in Interior Trim.
  3. Support the sliding door.
  4. Mark the location of the sliding door upper roller bracket to the door with a grease pencil.
  5. Remove the sliding door upper roller bracket bolts.
  6. Remove the sliding door upper roller bracket from the front edge of the upper track.

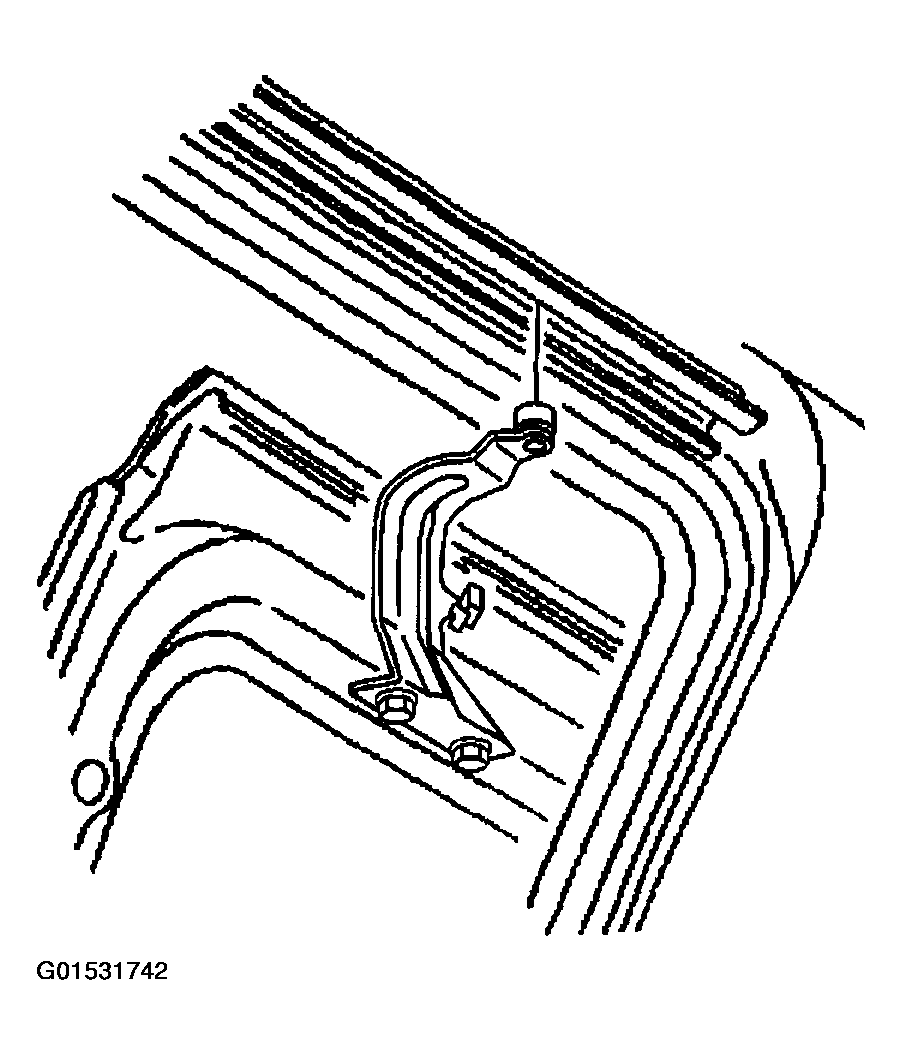

    Fig 1: Removing Sliding Door Upper Roller Bracket
    G01531742Courtesy of GENERAL MOTORS CORP.
