Removal Procedure

  1. Use the following procedure in order to remove the left power lock switch.
    1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. Lift up in order to unsnap the switch mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

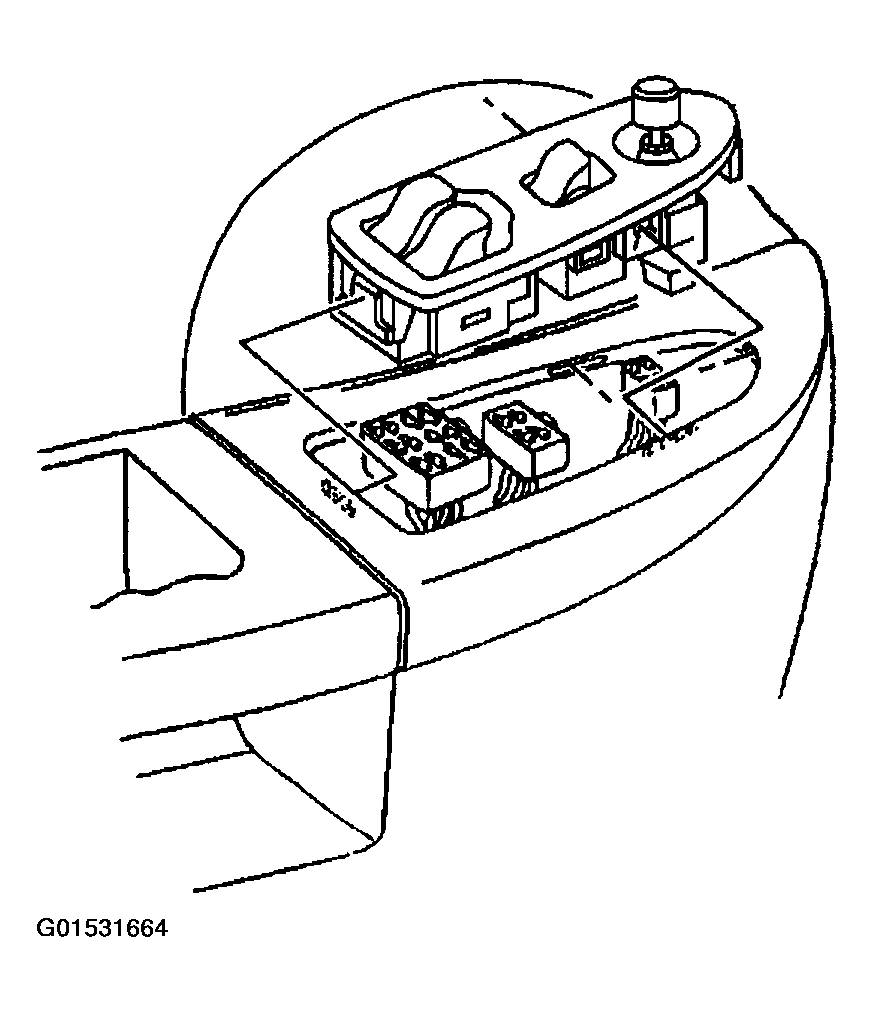

    Fig 1: Removing Power Door Lock Switch - Front Left
    G01531664Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the power lock switch from the switch mounting plate.

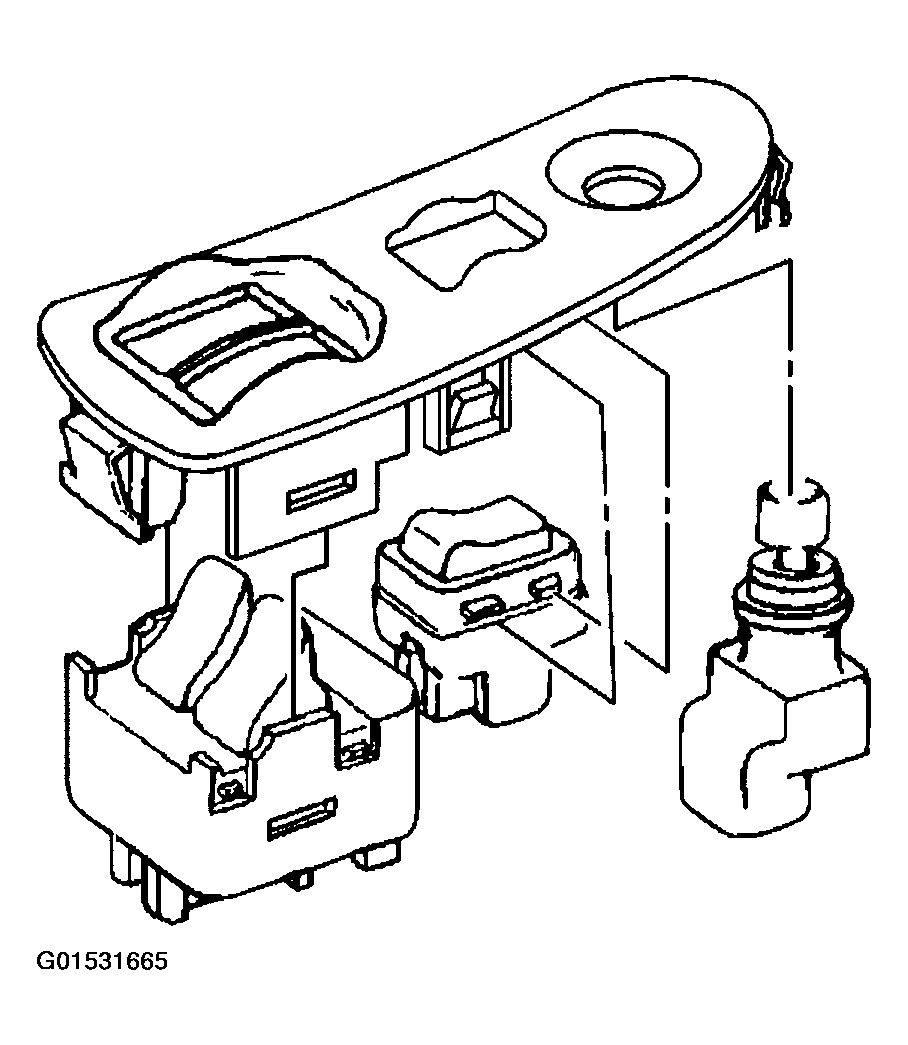

    Fig 2: Unsnapping Power Lock Switch From Switch Mounting Plate
    G01531665Courtesy of GENERAL MOTORS CORP.
