Removal Procedure

  1. Remove the outside rearview mirror face. Refer to MIRROR FACE REPLACEMENT  .
  2. Remove the outside rearview mirror. Refer to MIRROR REPLACEMENT - POWER (WITH TURN SIGNAL INDICATOR)  or MIRROR REPLACEMENT - POWER (WITHOUT TURN SIGNAL INDICATOR)   .
  3. Remove the outside rearview mirror motor screws.
  4. Remove the outside rearview mirror motor from the mirror housing.

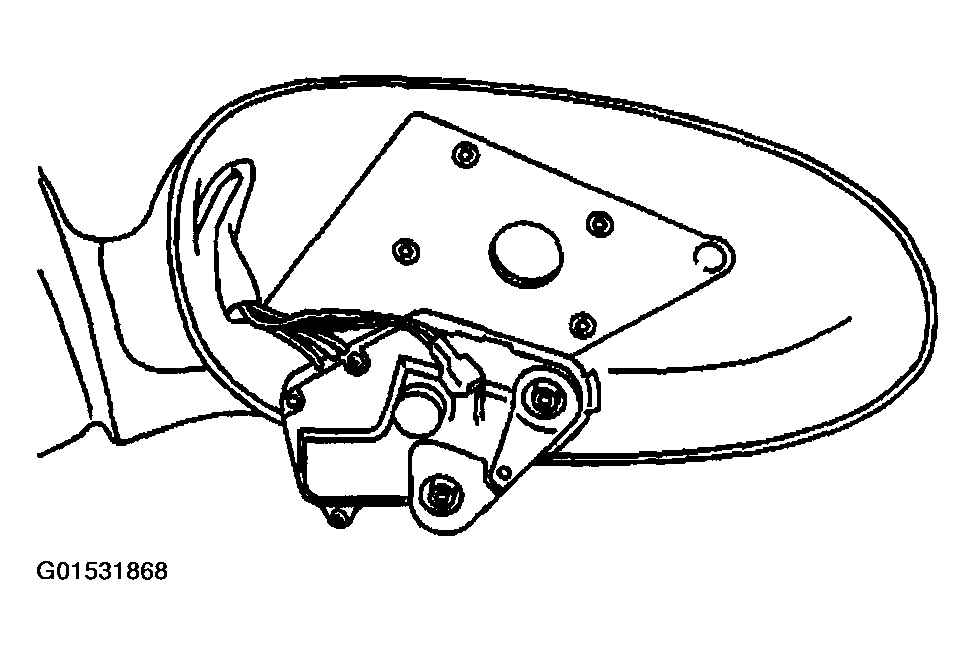

    Fig 1: Removing Outside Rearview Mirror Motor From Mirror Housing
    G01531868Courtesy of GENERAL MOTORS CORP.
