Removal Procedure

  1. Remove the sliding door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the sliding door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR  .
  3. Remove the sliding door latch screws.
  4. When the sliding door rear lock is loose, unhook the lock rod from the sliding door rear lock.
  5. Remove the sliding door rear lock from the sliding door.

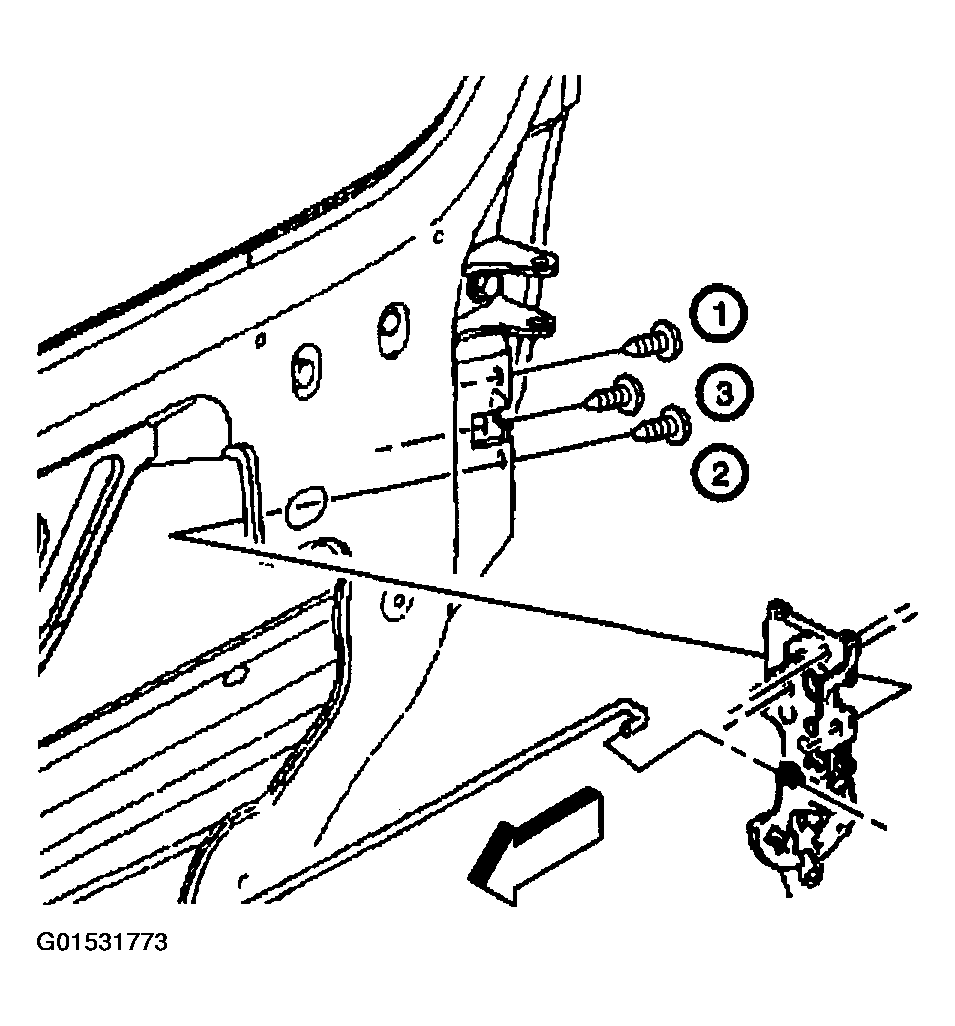

    Fig 1: Removing Sliding Door Rear Lock
    G01531773Courtesy of GENERAL MOTORS CORP.
