Home >> Chevrolet >> 2003 >> Venture Base, Van Cargo Extended >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Locating Pin Replacement - Sliding Door >> Removal Procedure

Removal Procedure

  1. Remove the sliding door locating pin screws.
  2. Remove the sliding door locating pin from the vehicle.

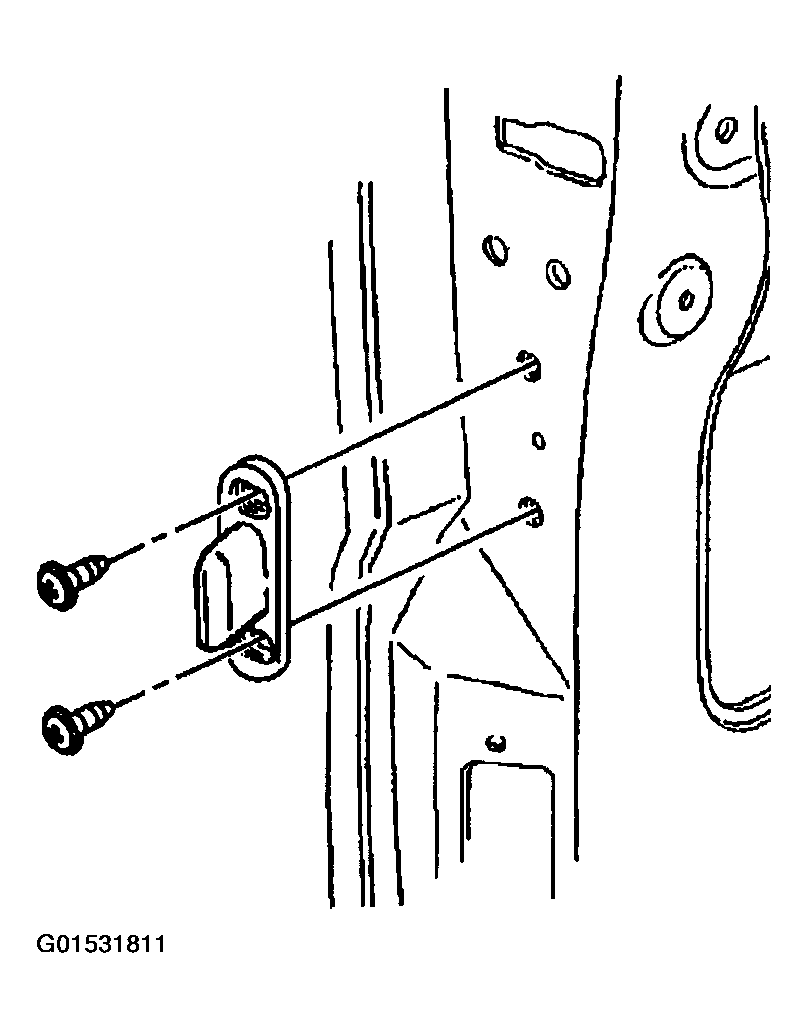

    Fig 1: Removing Sliding Door Locating Pin
    G01531811Courtesy of GENERAL MOTORS CORP.
