Removal Procedure

  1. Remove the sliding door inner trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the sliding door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - SLIDING DOOR  .
  3. Remove the sliding door latch screws.
  4. When the sliding door latch is loose, unhook the latch/lock rod from the sliding door latch.
  5. Remove the sliding door latch from the sliding door.

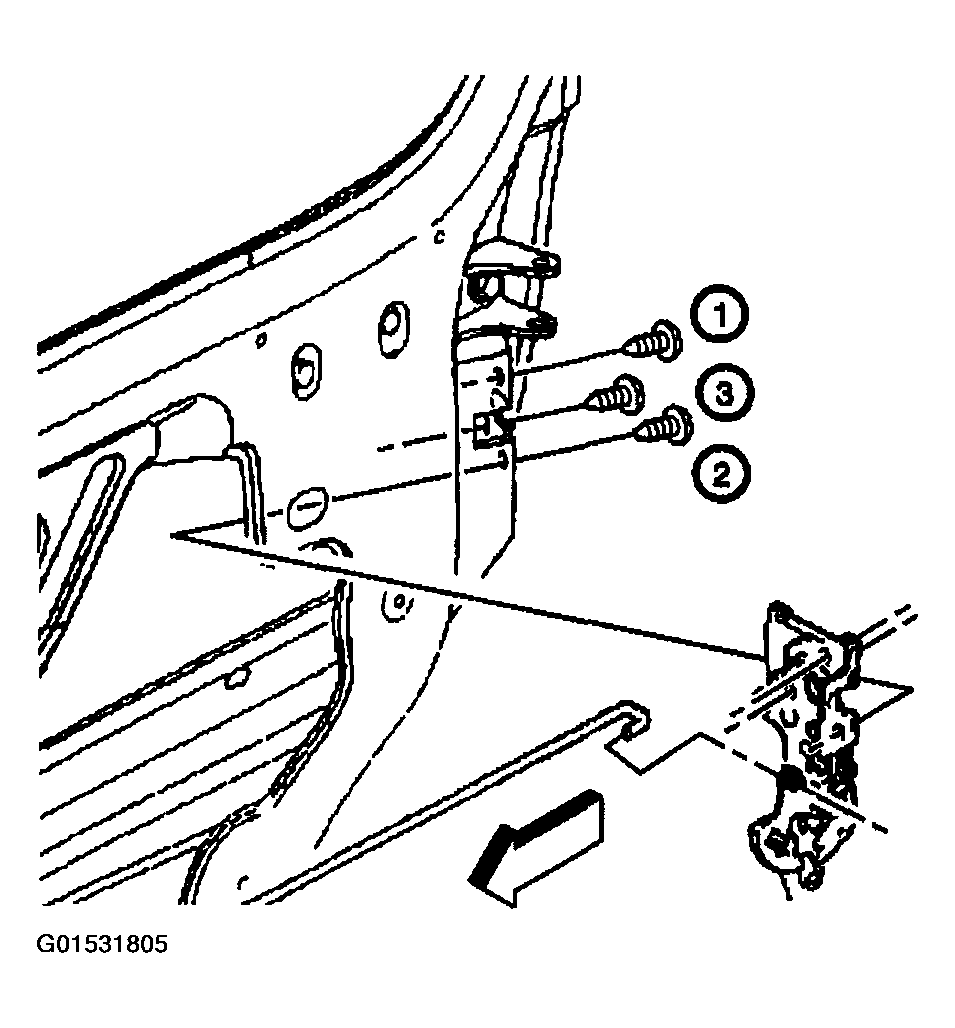

    Fig 1: Removing Sliding Door Latch Screws
    G01531805Courtesy of GENERAL MOTORS CORP.
