Removal Procedure

  1. Use J 42506  in order to remove the inside door handle clip.
  2. Remove the inside handle from the sliding door.

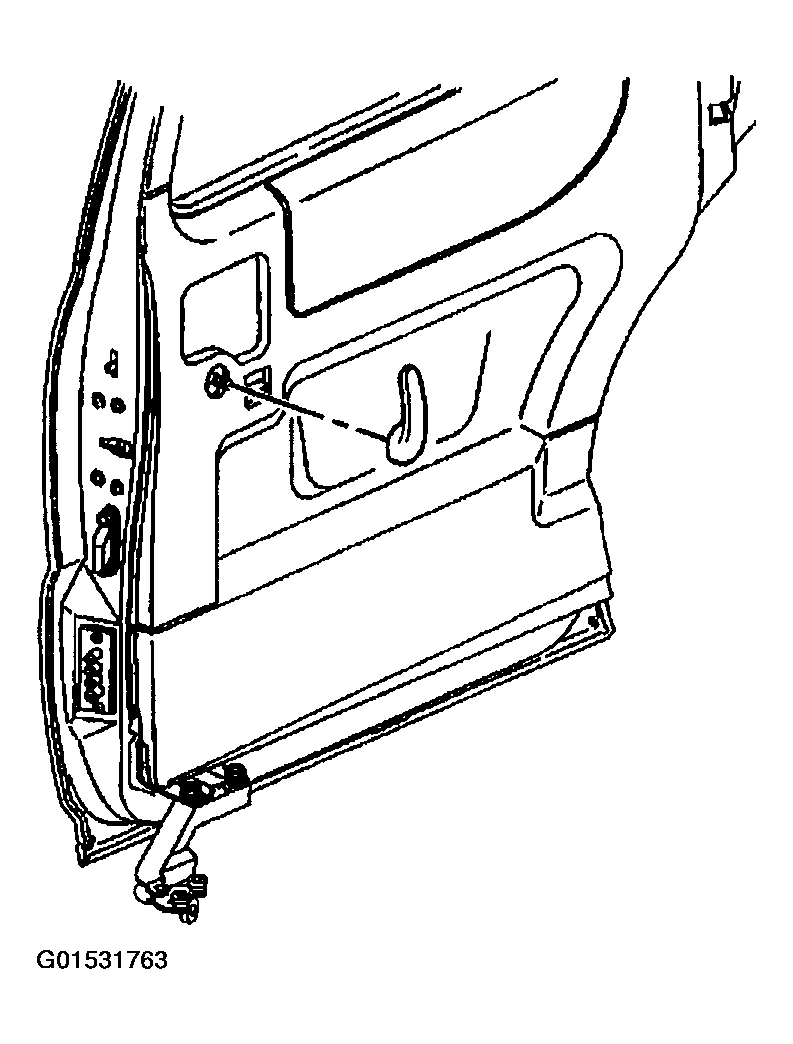

    Fig 1: Removing Inside Handle From Sliding Door
    G01531763Courtesy of GENERAL MOTORS CORP.
