Removal Procedure

  1. Use the following procedure in order to remove the switch mounting plate:
    1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. Lift up in order to unsnap the mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

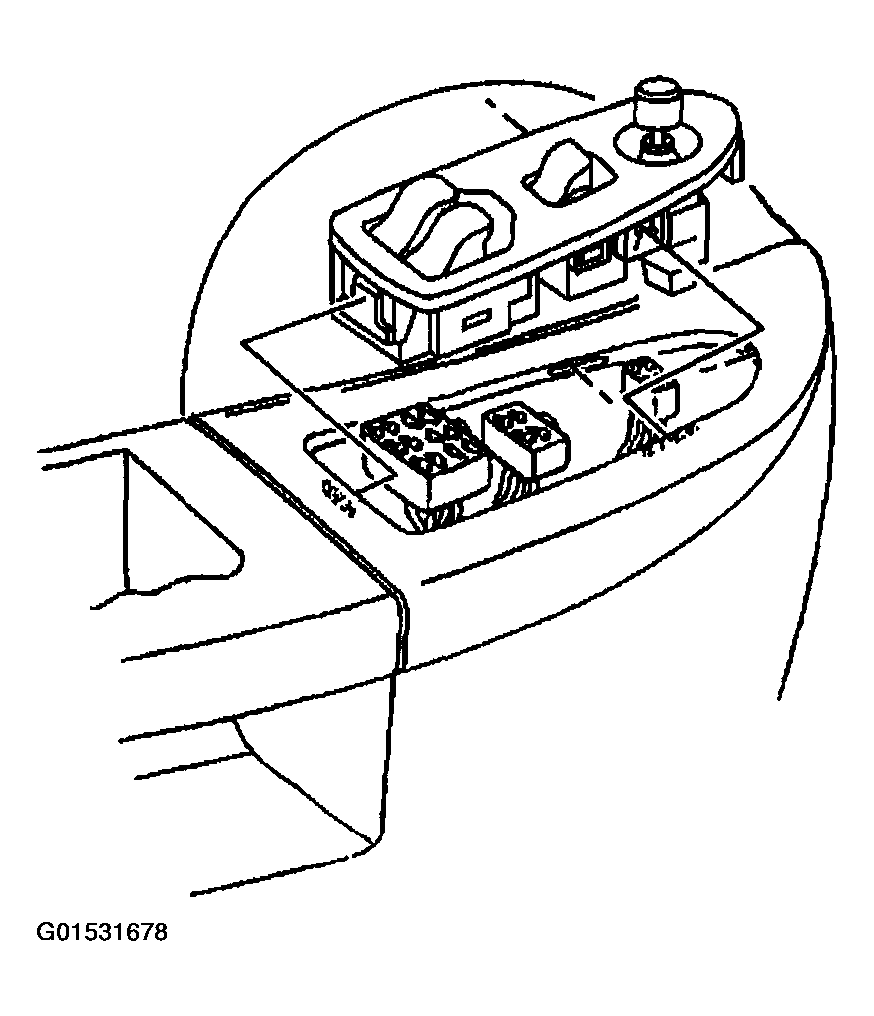

    Fig 1: Removing Switch Mounting Plate
    G01531678Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the switch from the mounting plate.

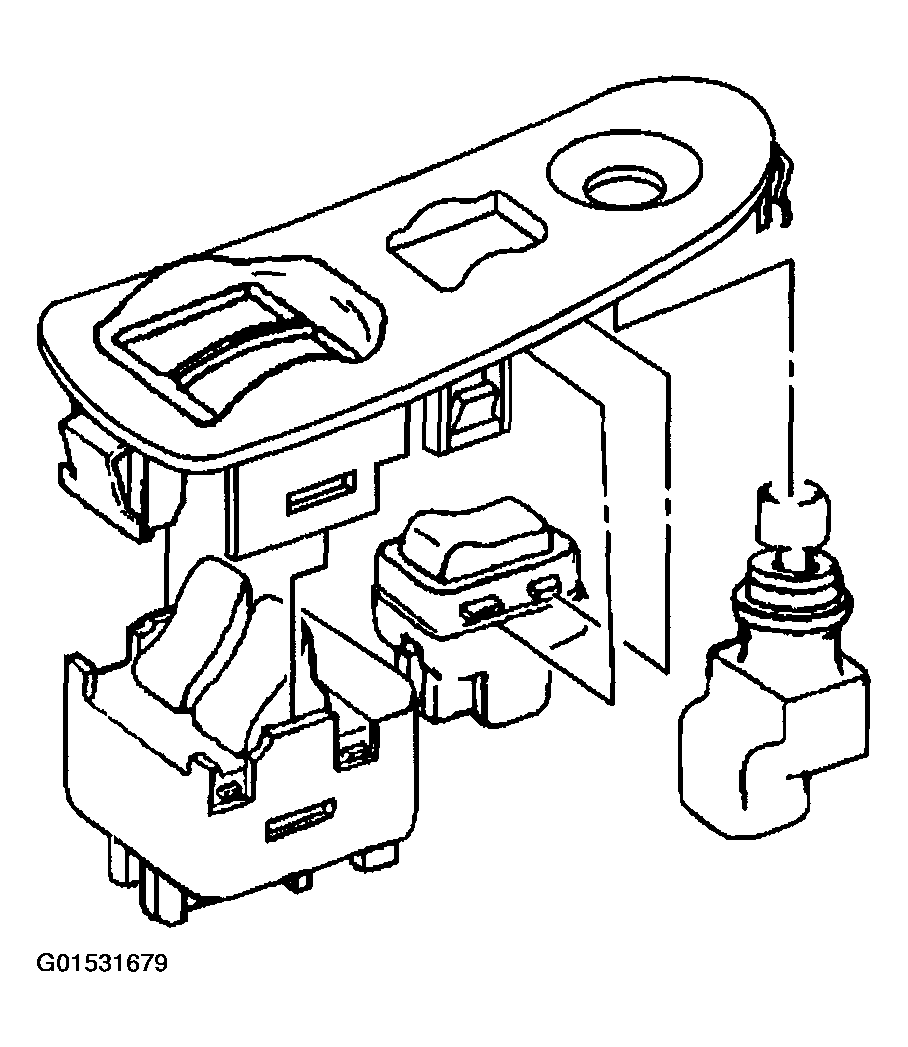

    Fig 2: Unsnapping Switch From Mounting Plate
    G01531679Courtesy of GENERAL MOTORS CORP.
