Removal Procedure

Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Remove the front door outside handle rod from the outside handle.
Remove the lock rod from the outside handle lock cylinder.

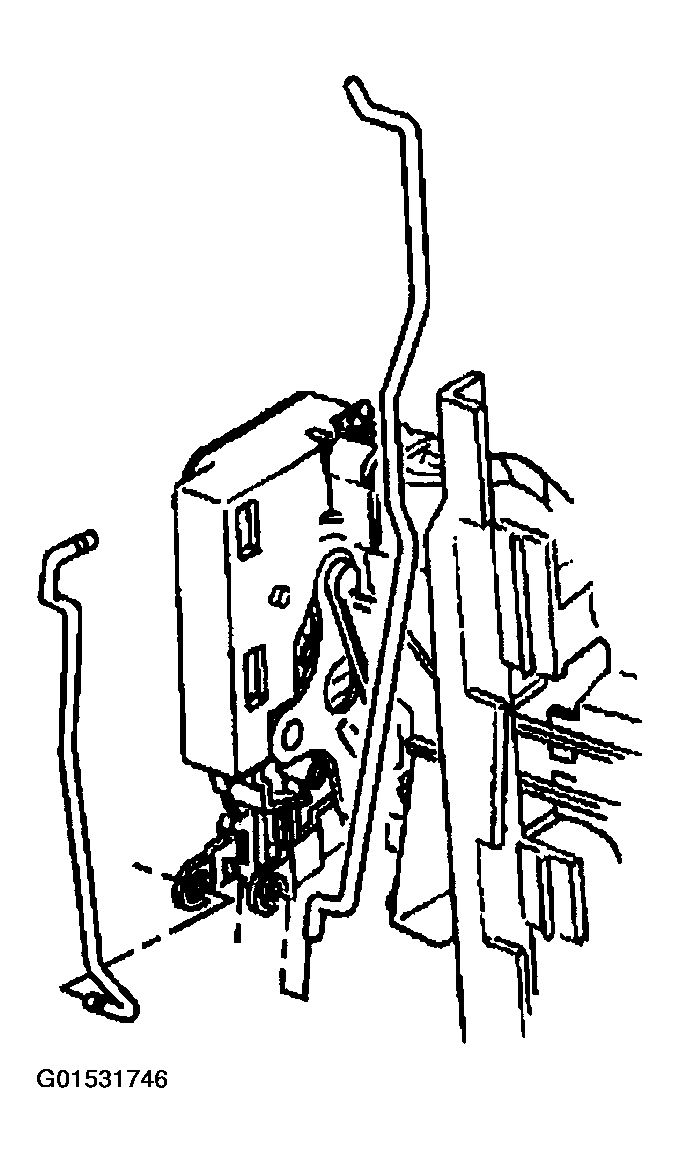

Fig 1: Removing Lock Rod From Outside Handle Lock Cylinder
Courtesy of GENERAL MOTORS CORP.
Remove the front door lock module harness connector, if equipped.

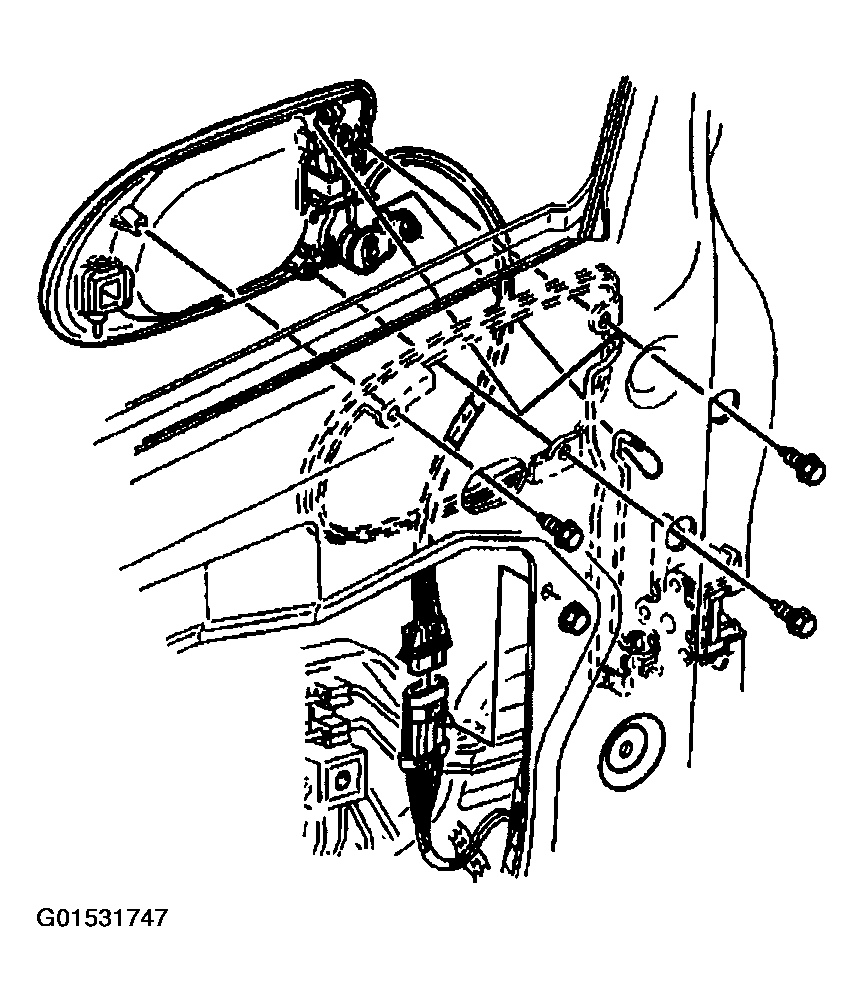

Fig 2: Removing Front Door Lock Module Harness Connector
Courtesy of GENERAL MOTORS CORP.
Remove the front door outside handle screws.
Remove the front door outside handle from the front door.

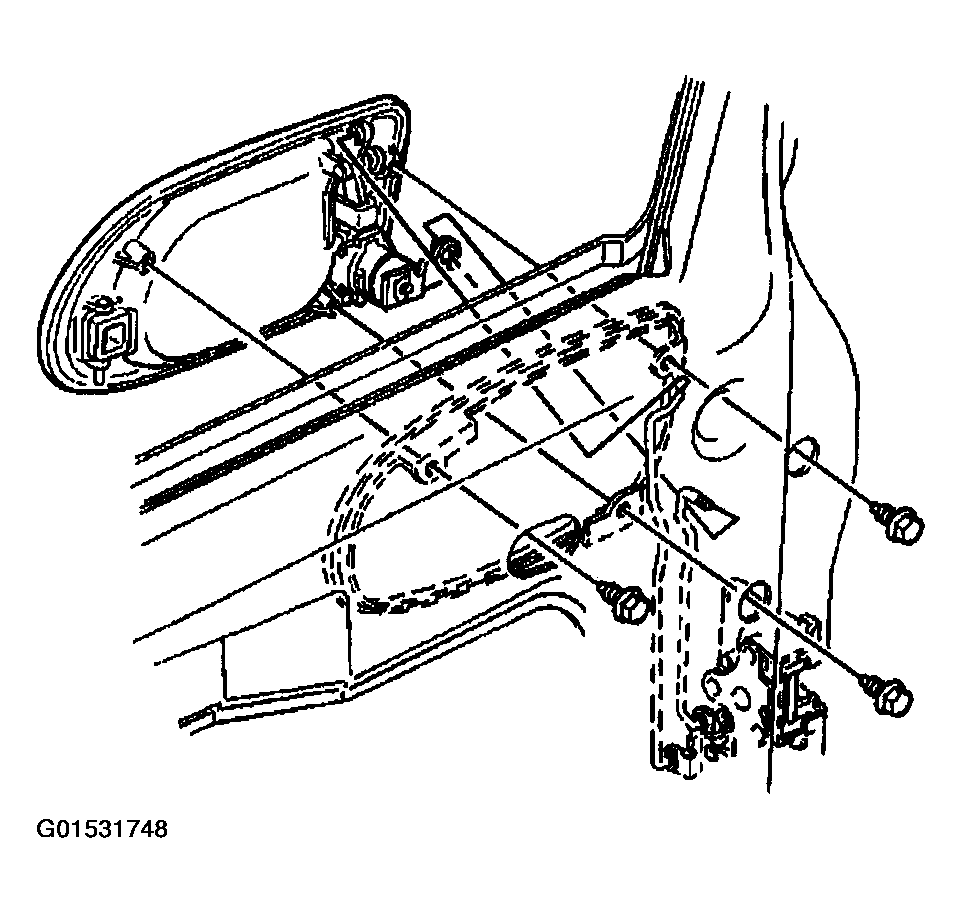

Fig 3: Removing Front Door Outside Handle
Courtesy of GENERAL MOTORS CORP.
