Removal Procedure

Remove the front door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
Remove the front door inside handle spring from the retainer clip.

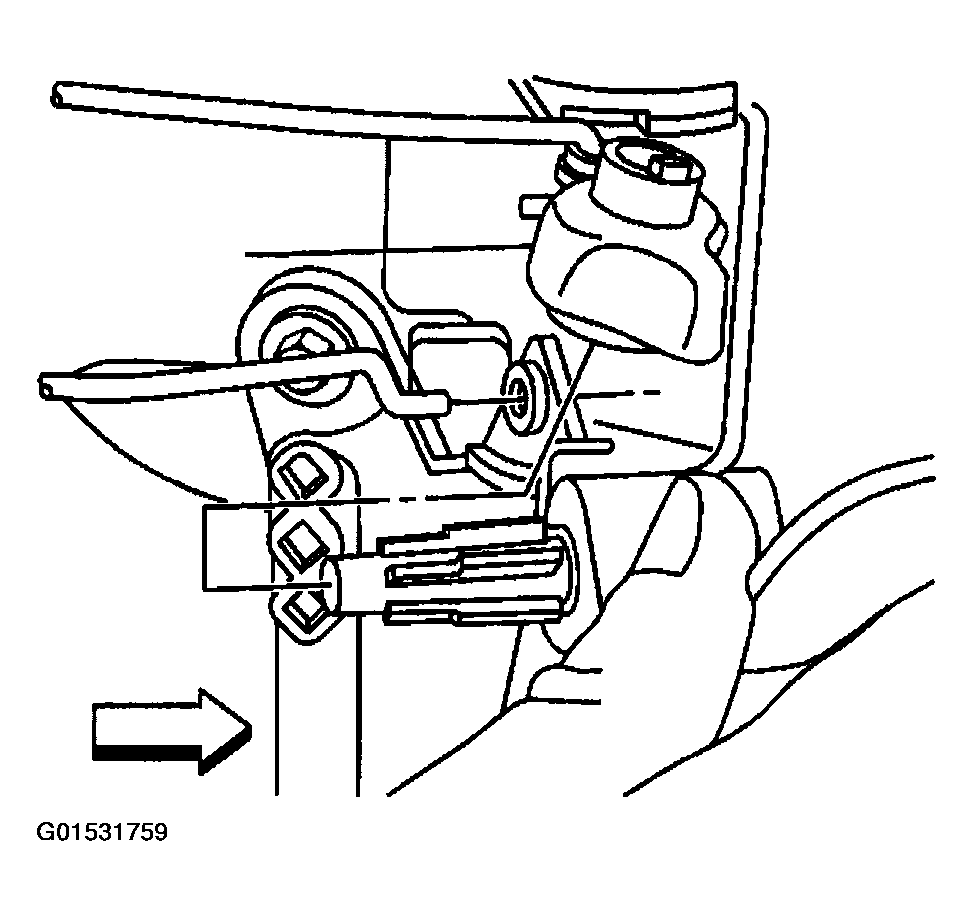

Fig 1: Removing Front Door Inside Handle Spring
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, remove the front door inside handle from the lock module.

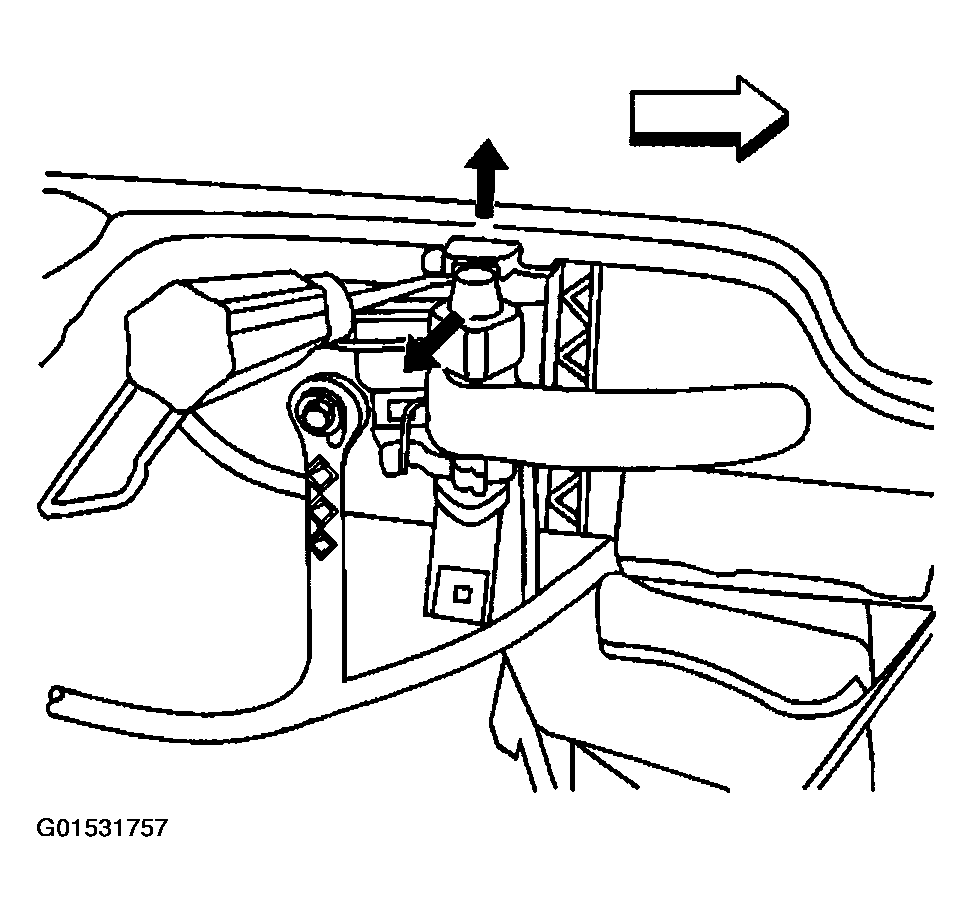

Fig 2: Removing Front Door Inside Handle
Courtesy of GENERAL MOTORS CORP.
Pull back on the door inside handle assembly.

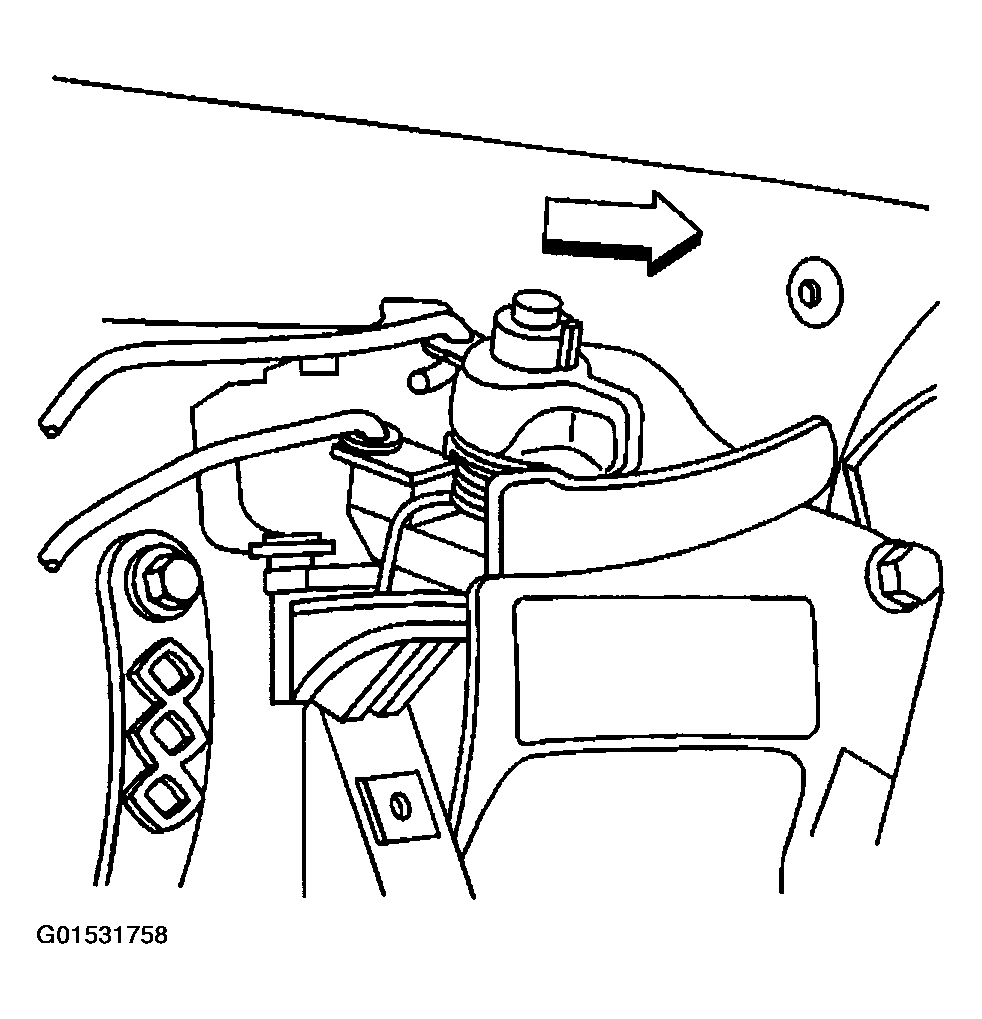

Fig 3: Pulling Back On Door Inside Handle Assembly
Courtesy of GENERAL MOTORS CORP.
Separate the upper and lower portions from each other. Slide the upper and lower portions off the lock rods.

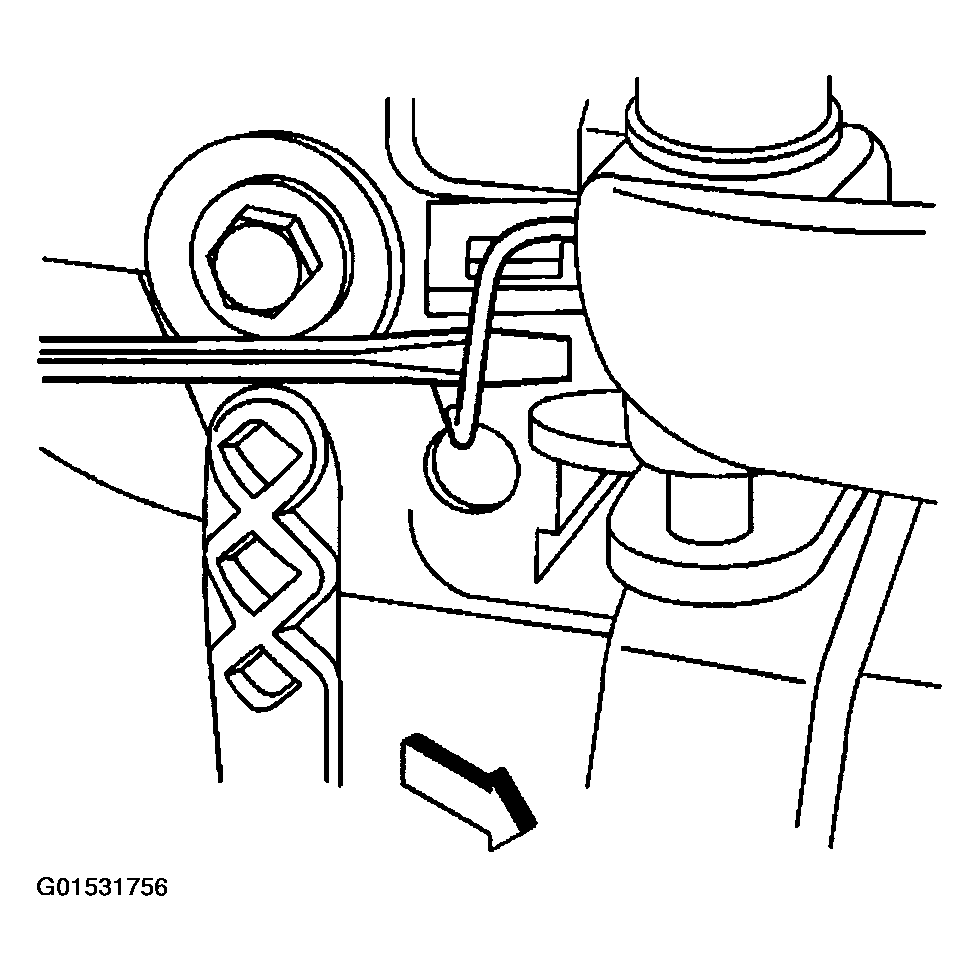

Fig 4: Sliding Upper And Lower Portions Off Lock Rods
Courtesy of GENERAL MOTORS CORP.
