Removal Procedure

  1. Remove the right rear tail lamp. Refer to TAIL LAMP ASSEMBLY AND / OR BACKUP, SIDEMARKER, STOP, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  2. Remove the sliding door center track cover rear screw.
  3. Open the sliding door.

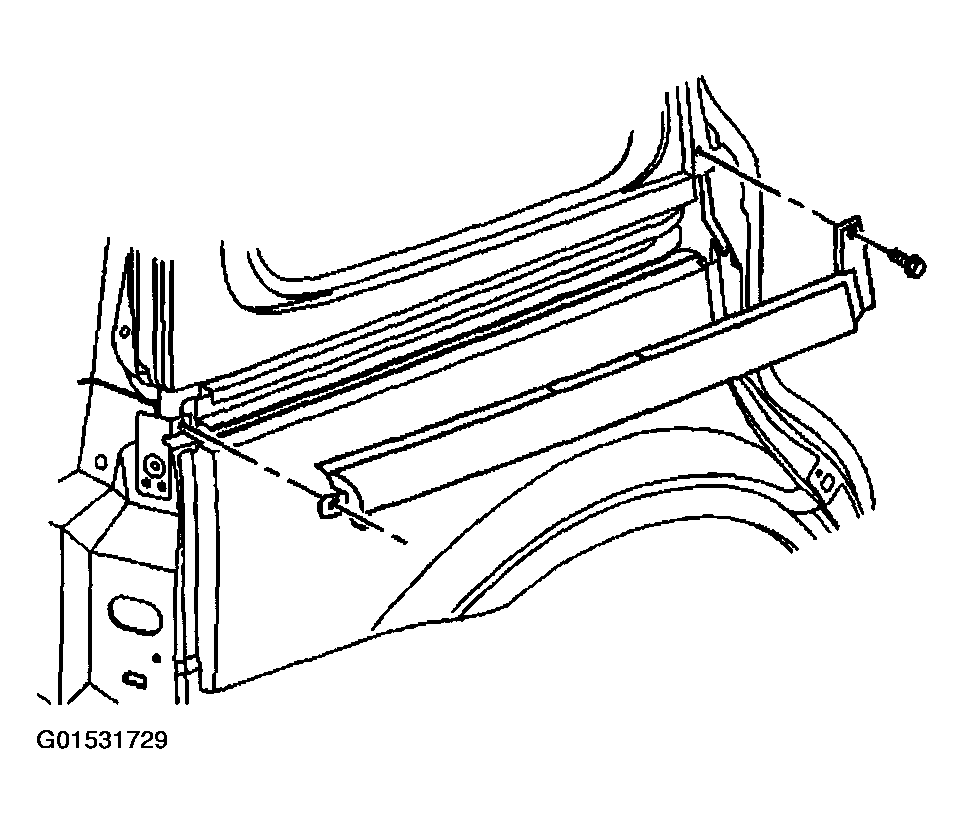

    Fig 1: Removing Sliding Door Center Track Cover Rear
    G01531729Courtesy of GENERAL MOTORS CORP.
  4. Remove the sliding door center track bracket screws.
  5. Remove the sliding door center track bracket from the vehicle.

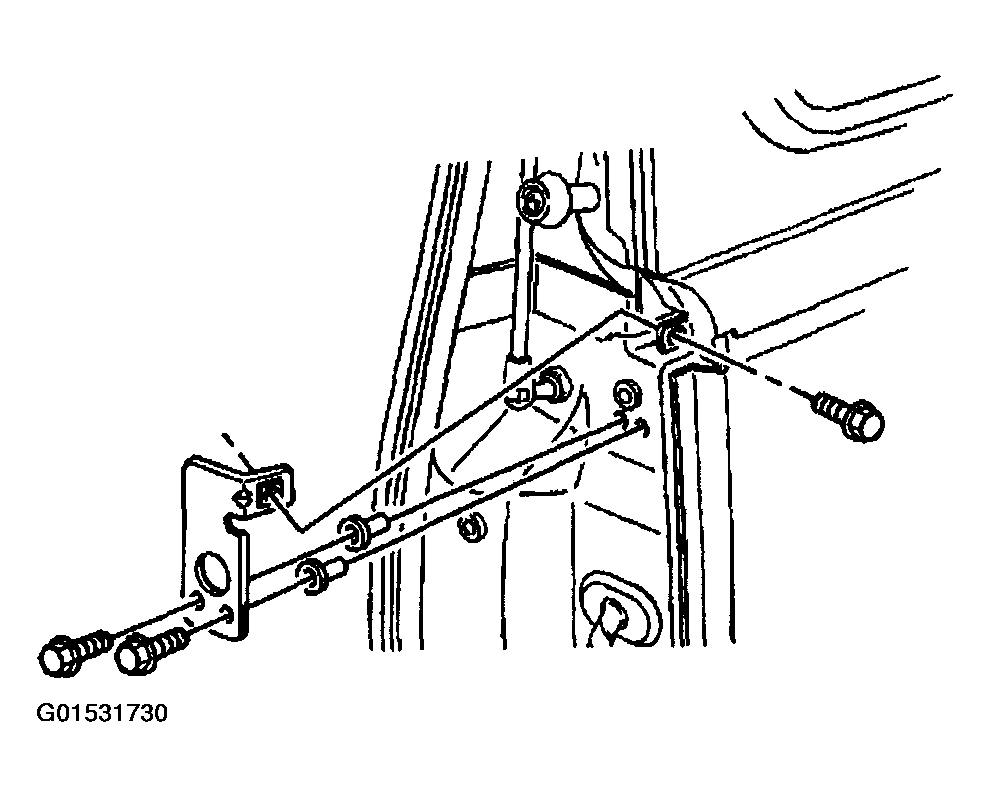

    Fig 2: Removing Sliding Door Center Track Bracket
    G01531730Courtesy of GENERAL MOTORS CORP.
