Removal Procedure

  1. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  2. Pull the alarm (4) from power sliding door actuator motor, separating the hook and loop retainer.
  3. Remove the alarm electrical connector.

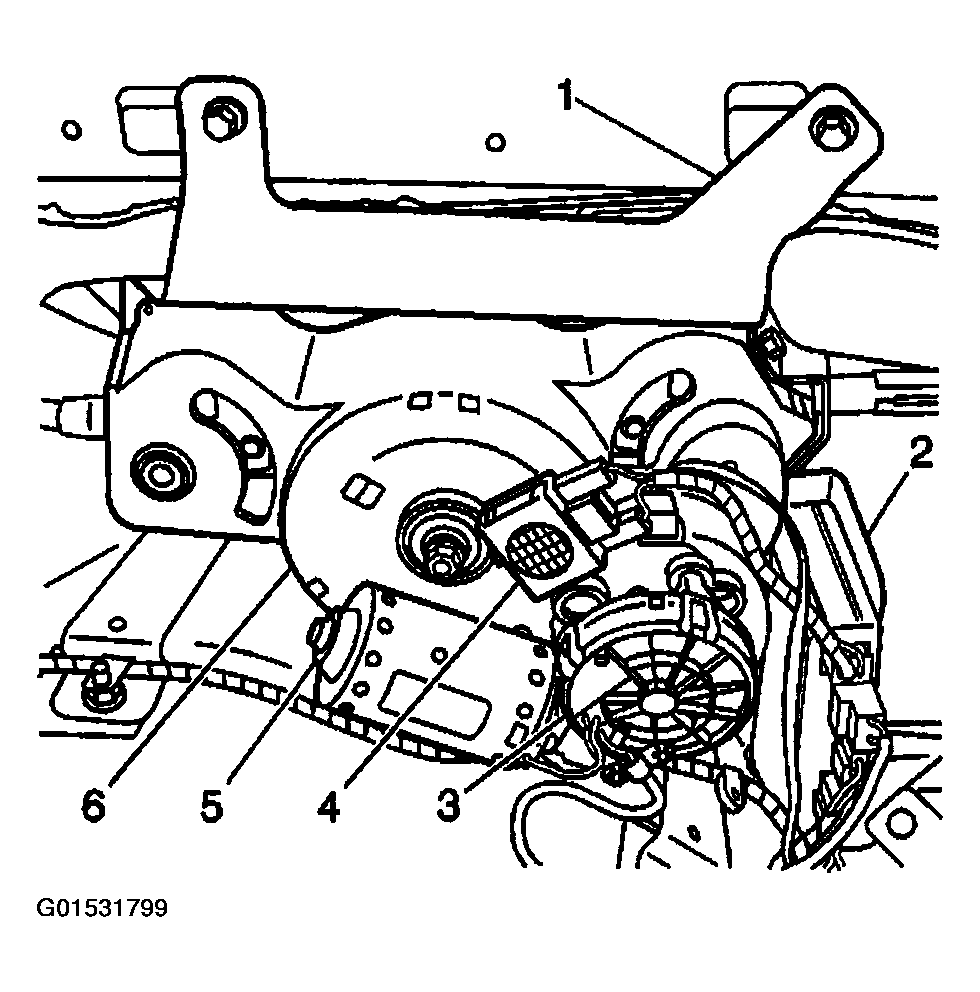

    Fig 1: Pulling Alarm From Power Sliding Door Actuator Motor
    G01531799Courtesy of GENERAL MOTORS CORP.
