Removal Procedure

  1. Remove the left rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module (2).
  3. Pull the PSD actuator control module (2) inboard in order to unhook the control module from the actuator motor.

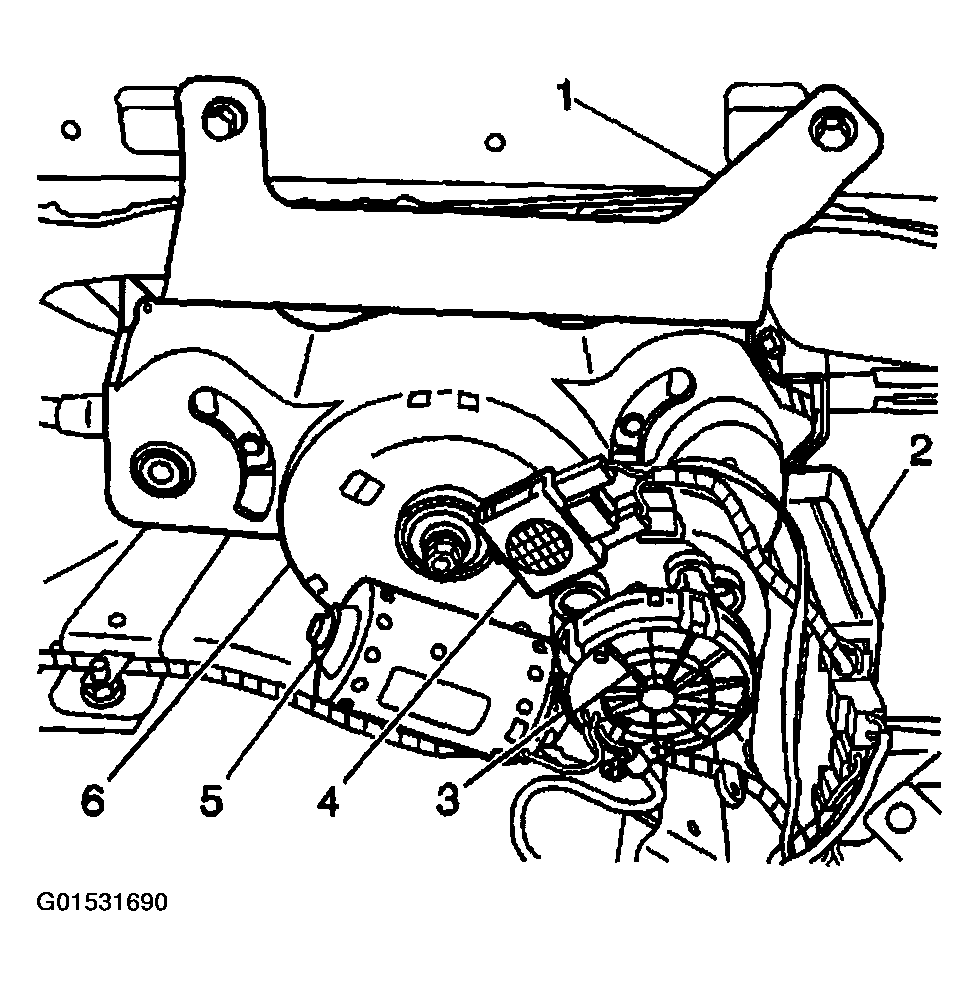

    Fig 1: Identifying PSD Actuator Control Module
    G01531690Courtesy of GENERAL MOTORS CORP.
