Power Windows Inoperative - All

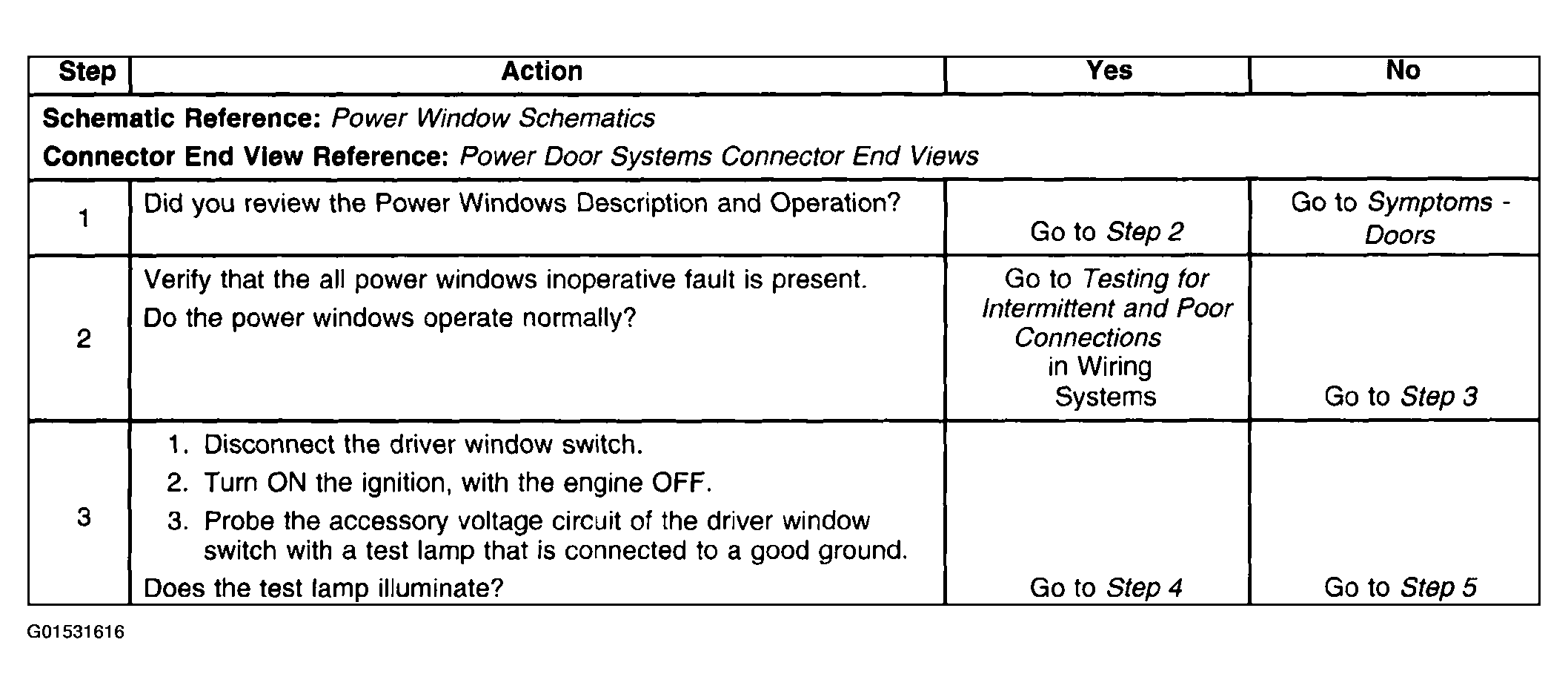

Fig 1: Power Windows Inoperative - All Diagnostic Specifications (1 Of 2)
G01531616Courtesy of GENERAL MOTORS CORP.

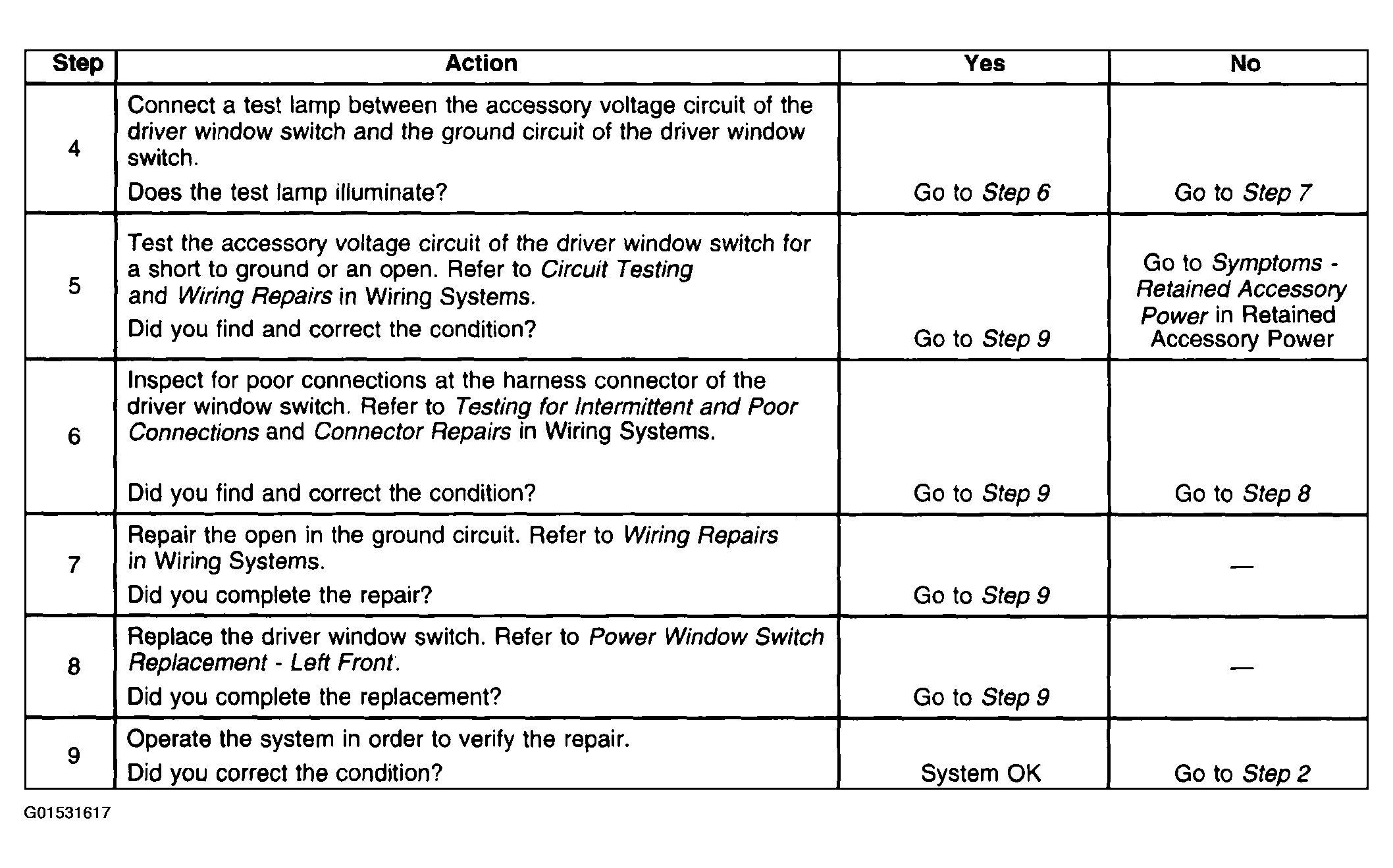

Fig 2: Power Windows Inoperative - All Diagnostic Specifications (2 Of 2)
G01531617Courtesy of GENERAL MOTORS CORP.
