Test Description

The number(s) below refer to the step number(s) on the diagnostic table.

3. The right and left power sliding doors operate as independent systems. Enter the on-board diagnostic modes of the system for which the condition exists.

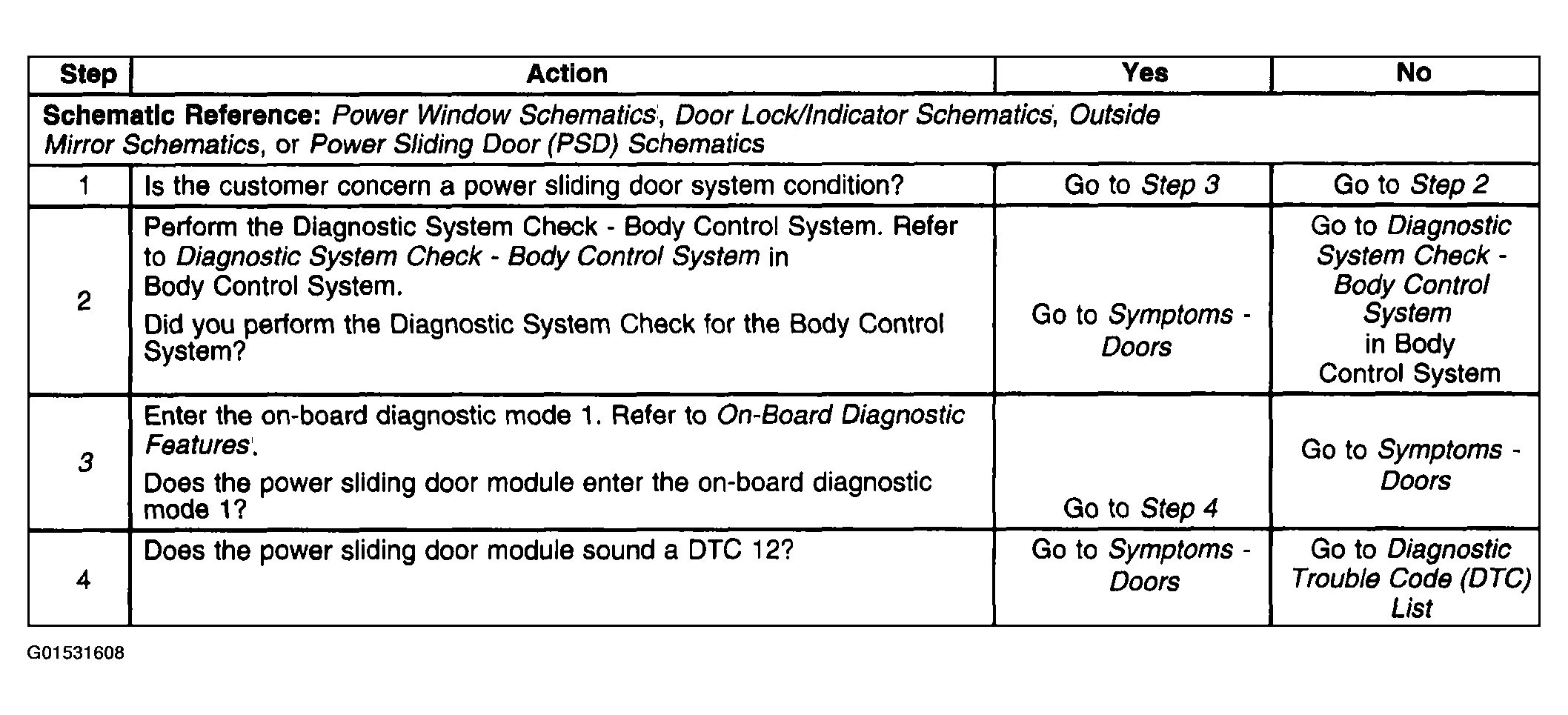

Fig 1: Diagnostic System Check - Door Systems
G01531608Courtesy of GENERAL MOTORS CORP.
