Diagnostic Information and Procedures
>>
Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart

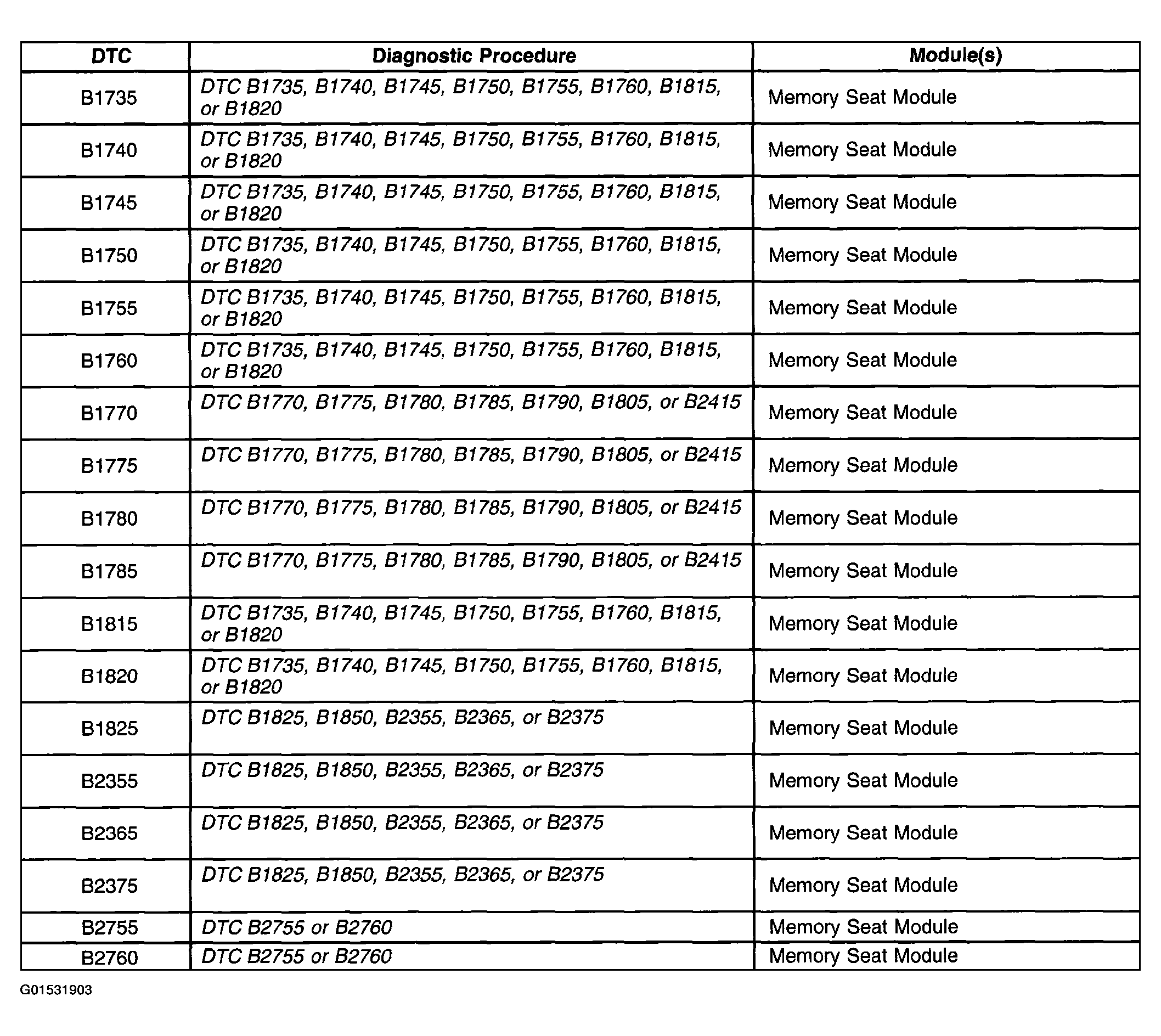

Fig 1: Diagnostic Trouble Code Chart
Courtesy of GENERAL MOTORS CORP.
