Schematic and Routing Diagrams

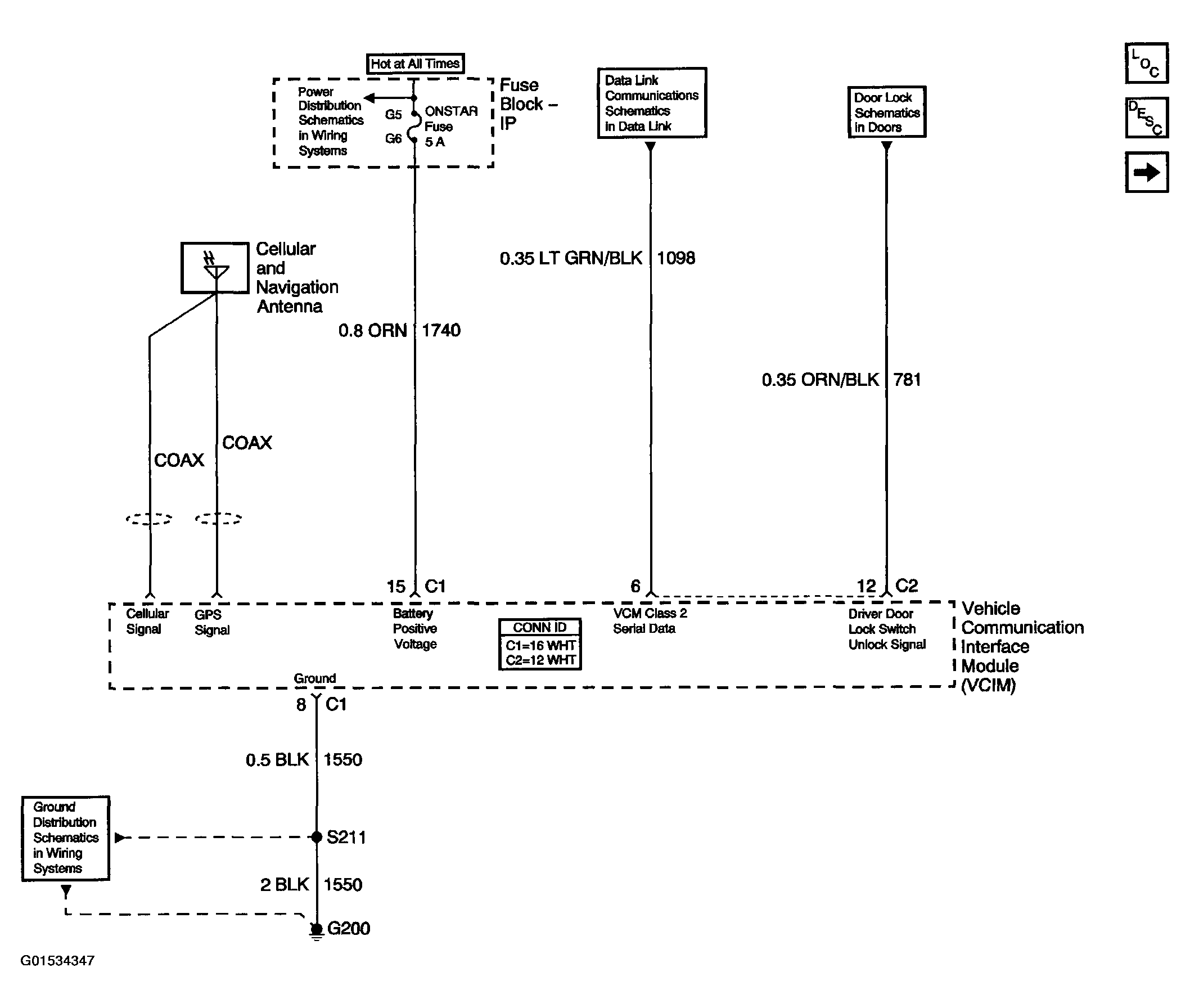

Fig 1: OnStar Schematic (OnStar Power And Grounds)

G01534347

Courtesy of GENERAL MOTORS CORP.

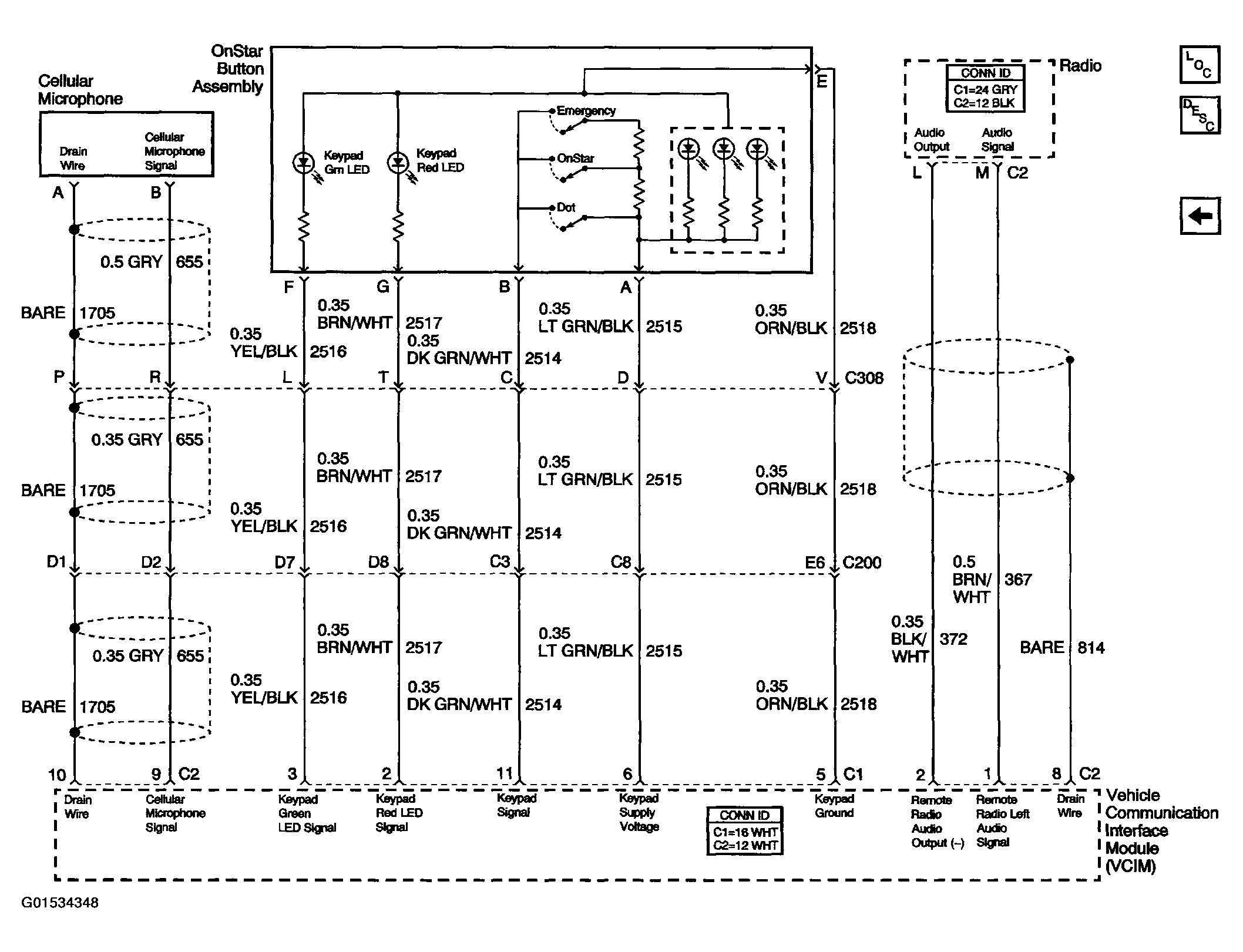

Fig 2: OnStar Schematic (OnStar Inputs And Outputs)

G01534348

Courtesy of GENERAL MOTORS CORP.
