Removal Procedure

  1. Remove the overhead console. Refer to CONSOLE REPLACEMENT -- OVERHEAD (SINGLE) or CONSOLE REPLACEMENT -- OVERHEAD (DUAL) or CONSOLE REPLACEMENT -- OVERHEAD (CF5) in Interior Trim.
  2. Disconnect the microphone electrical connector.

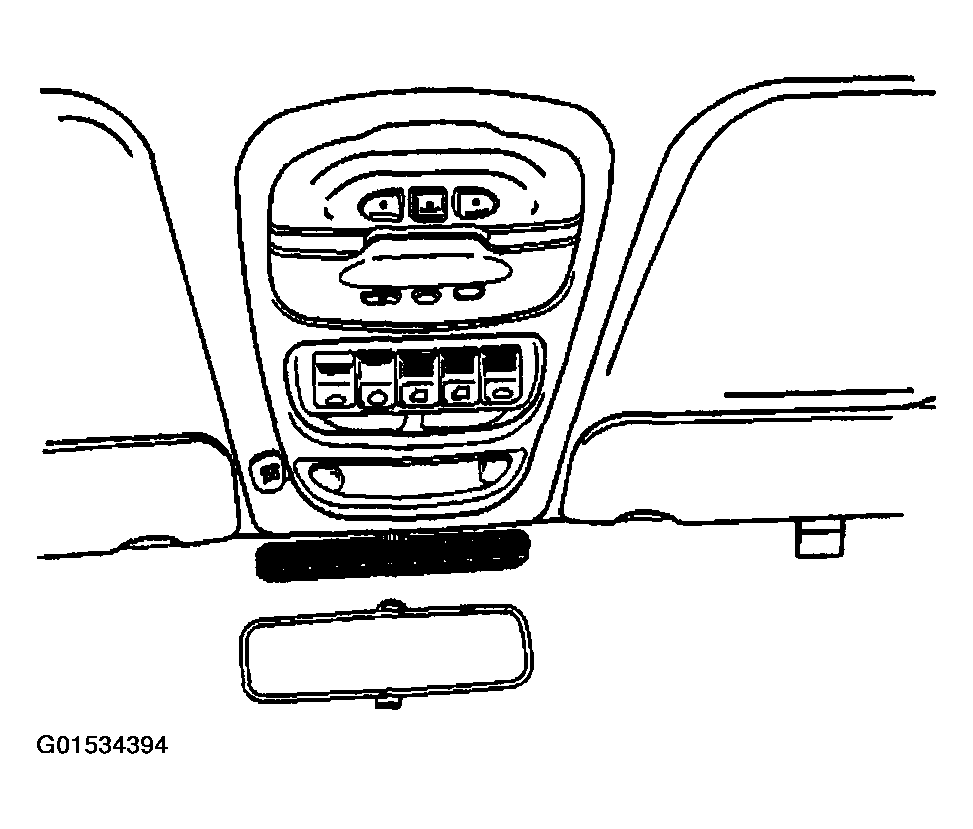

    Fig 1: Disconnecting Microphone Electrical Connector
    G01534394Courtesy of GENERAL MOTORS CORP.
  3. Remove the microphone from the headliner.

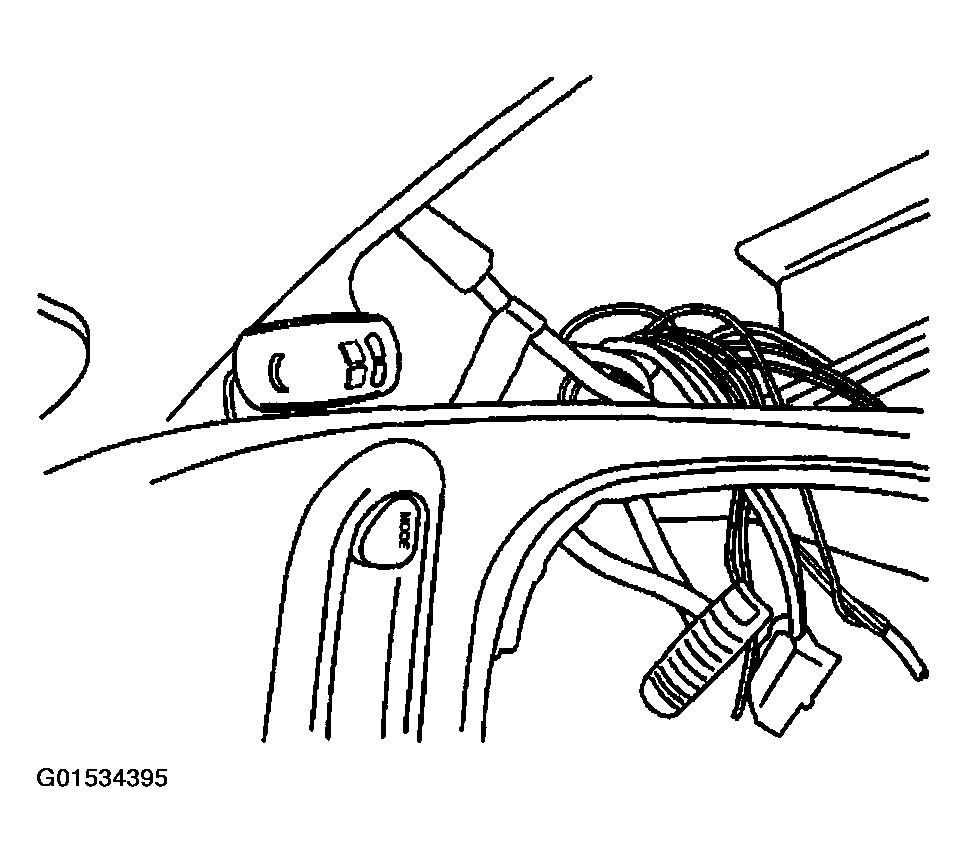

    Fig 2: Removing Microphone From Headliner
    G01534395Courtesy of GENERAL MOTORS CORP.
