Installation Procedure

  1. Place the antenna assembly on the roof opening.

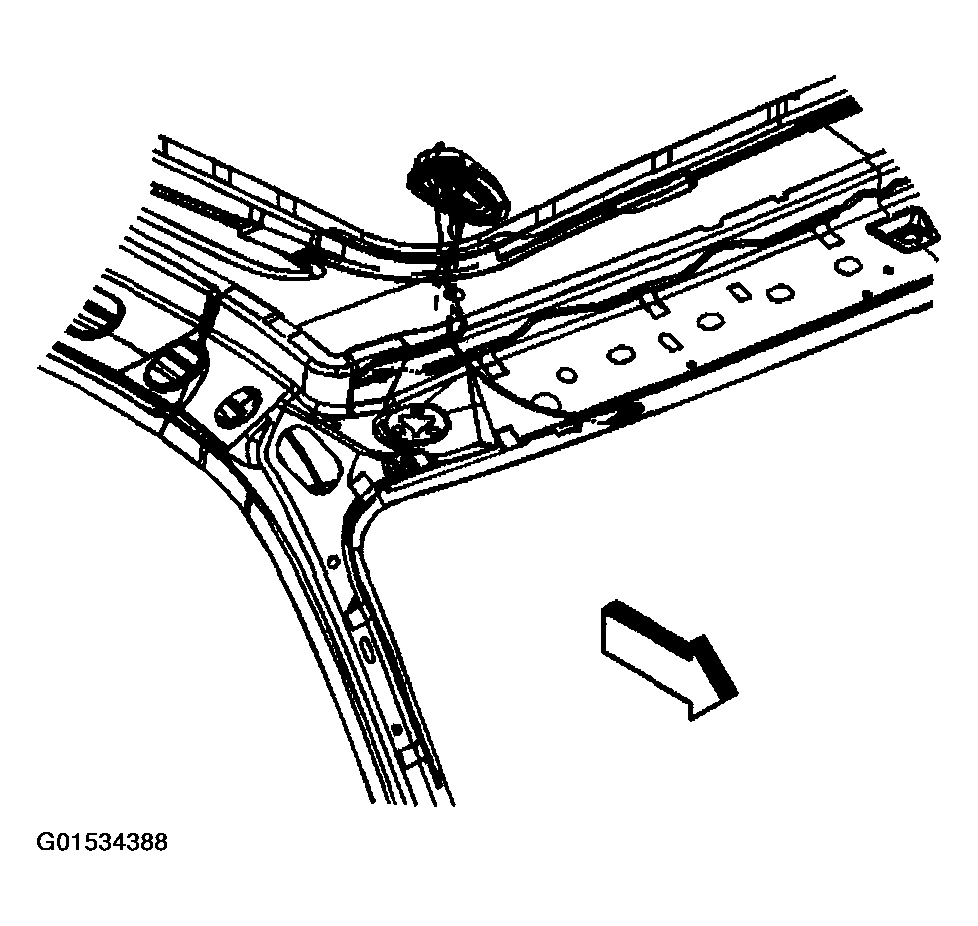

    Fig 1: Placing Antenna Assembly On Roof Opening
    G01534388Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Tighten the retaining nut.

    Tighten

    Tighten the nut to 6 N.m (53 lb in).

  3. Connect the antenna cables
  4. Install the headliner. Refer to HEADLINER REPLACEMENT  in Interior Trim.
    Fig 2: Connecting Antenna Cables
    G01534389Courtesy of GENERAL MOTORS CORP.
