Test Description

The numbers below refer to the step numbers on the diagnostic table.

3. Determines if the OnStar® status LED has the necessary Green LED signal circuit voltage.

5. If the Green LED signal is shorted to voltage then the OnStar® three button assembly has been damaged and the OnStar® three button assembly must be replaced.

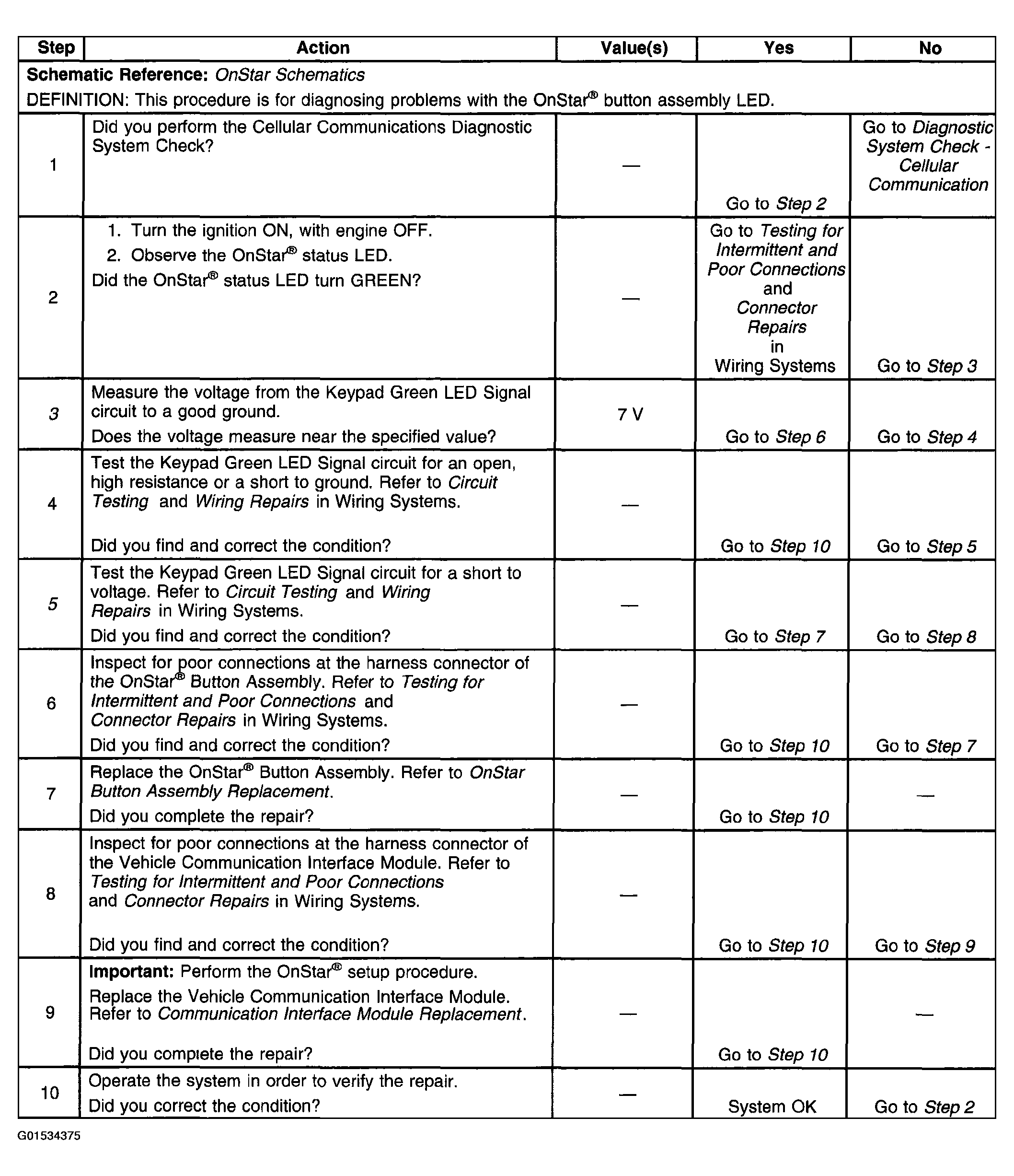

Fig 1: OnStar Button LED Inoperative Diagnostic Chart
G01534375Courtesy of GENERAL MOTORS CORP.
