Schematic and Routing Diagrams

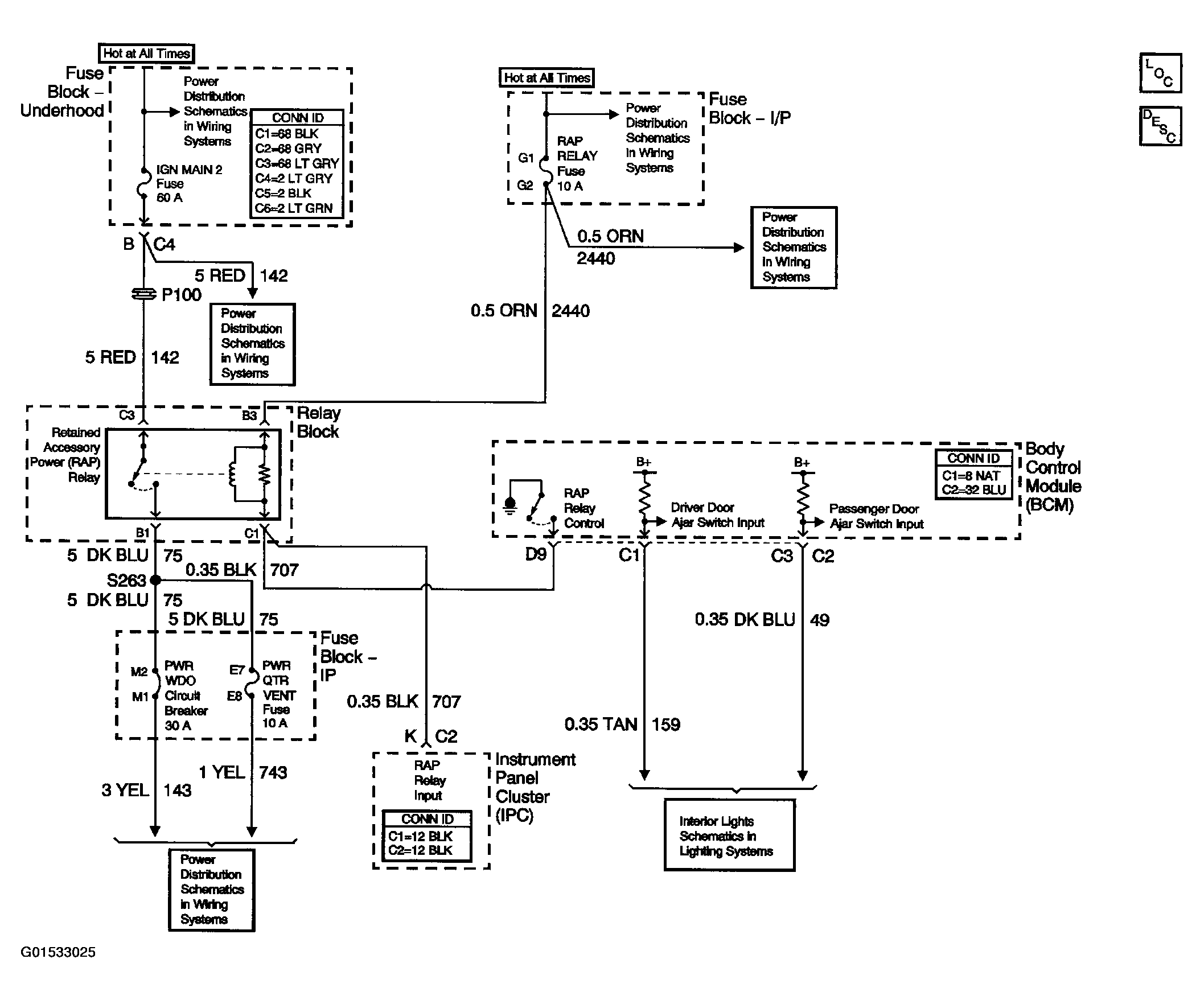

Fig 1: Retained Accessory Power (RAP) Schematic

G01533025

Courtesy of GENERAL MOTORS CORP.
