Installation Procedure

  1. Align the rear object detection module to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear object detection module mounting bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the electrical connector to the rear object detection module and press in locking tab.
  4. Install the rear compartment side trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER  in Interior Trim.

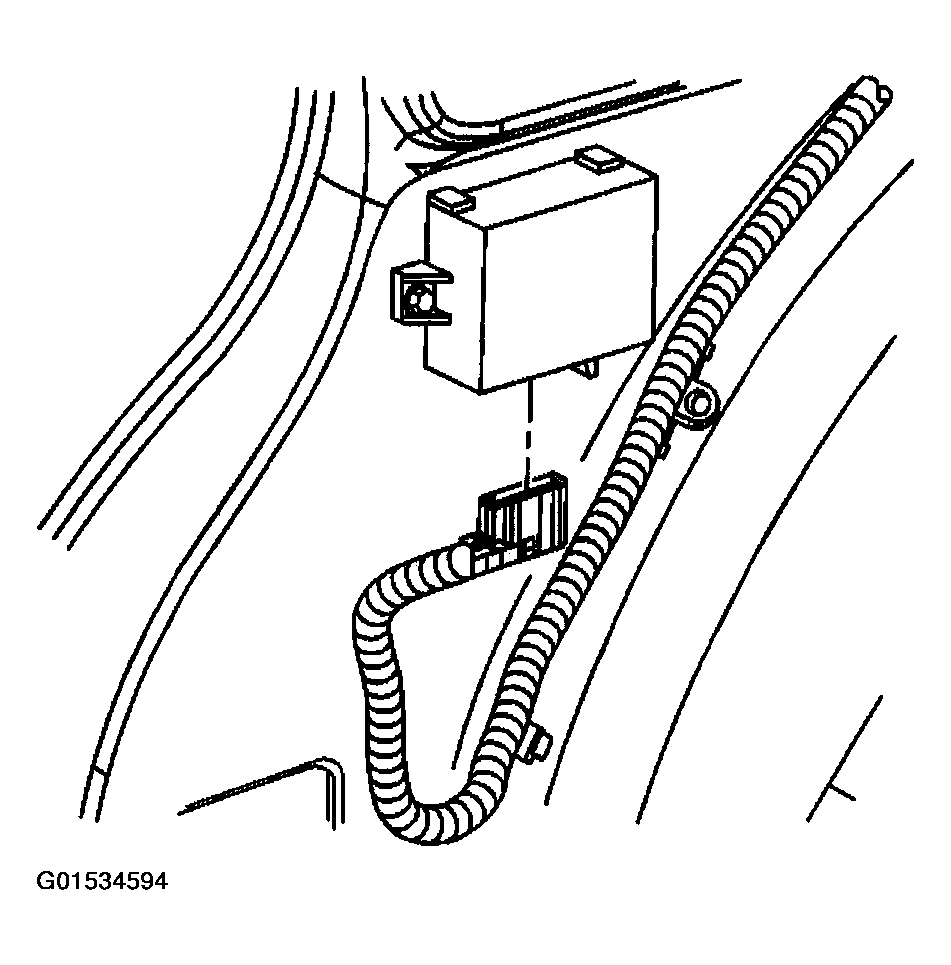

    Fig 1: Installing Rear Object Detection Module To Vehicle
    G01534594Courtesy of GENERAL MOTORS CORP.
