Power Steering System Test Procedure

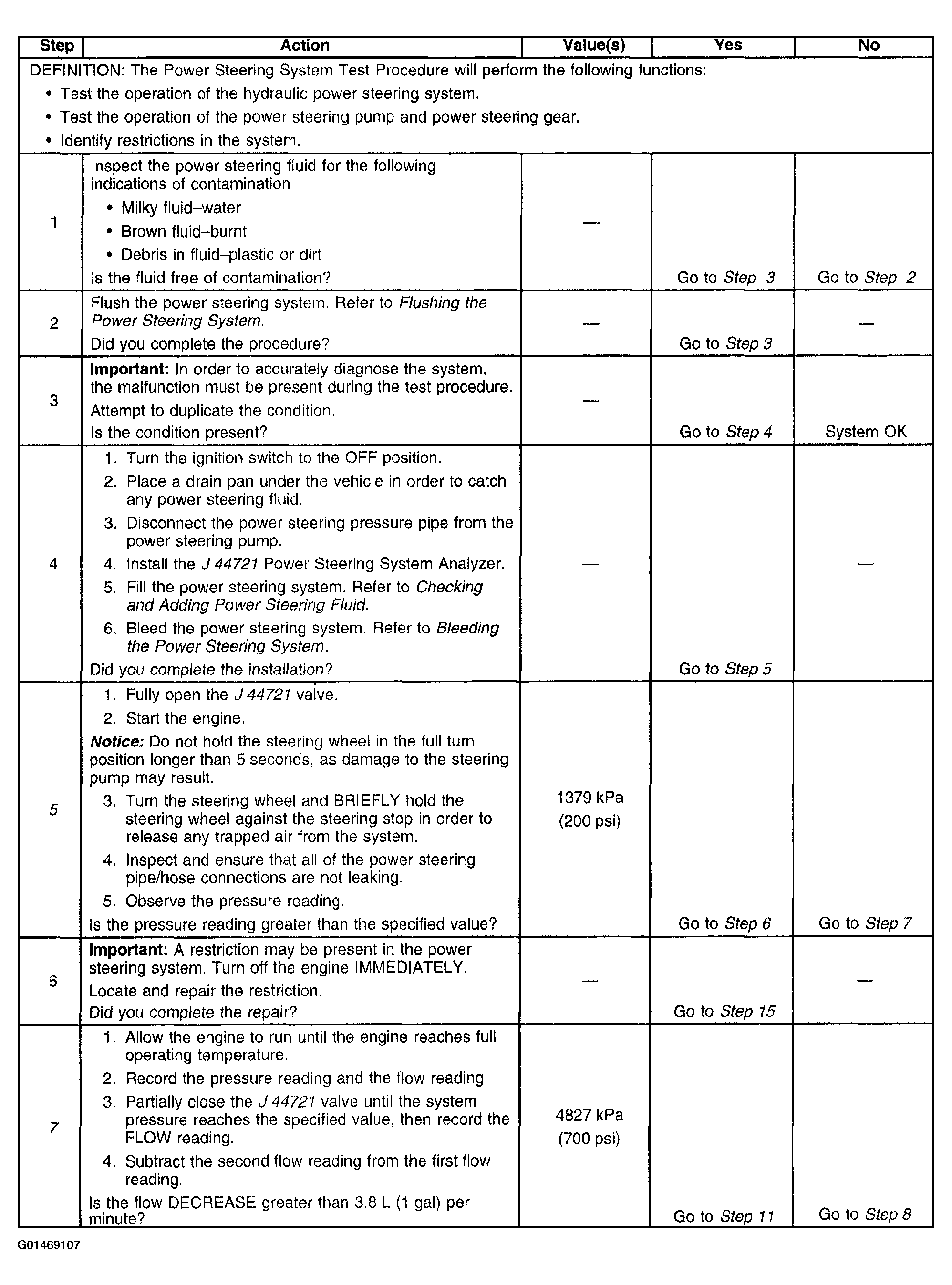

Fig 1: Testing Of Power Steering System (Steps 1-7)
G01469107Courtesy of GENERAL MOTORS CORP.

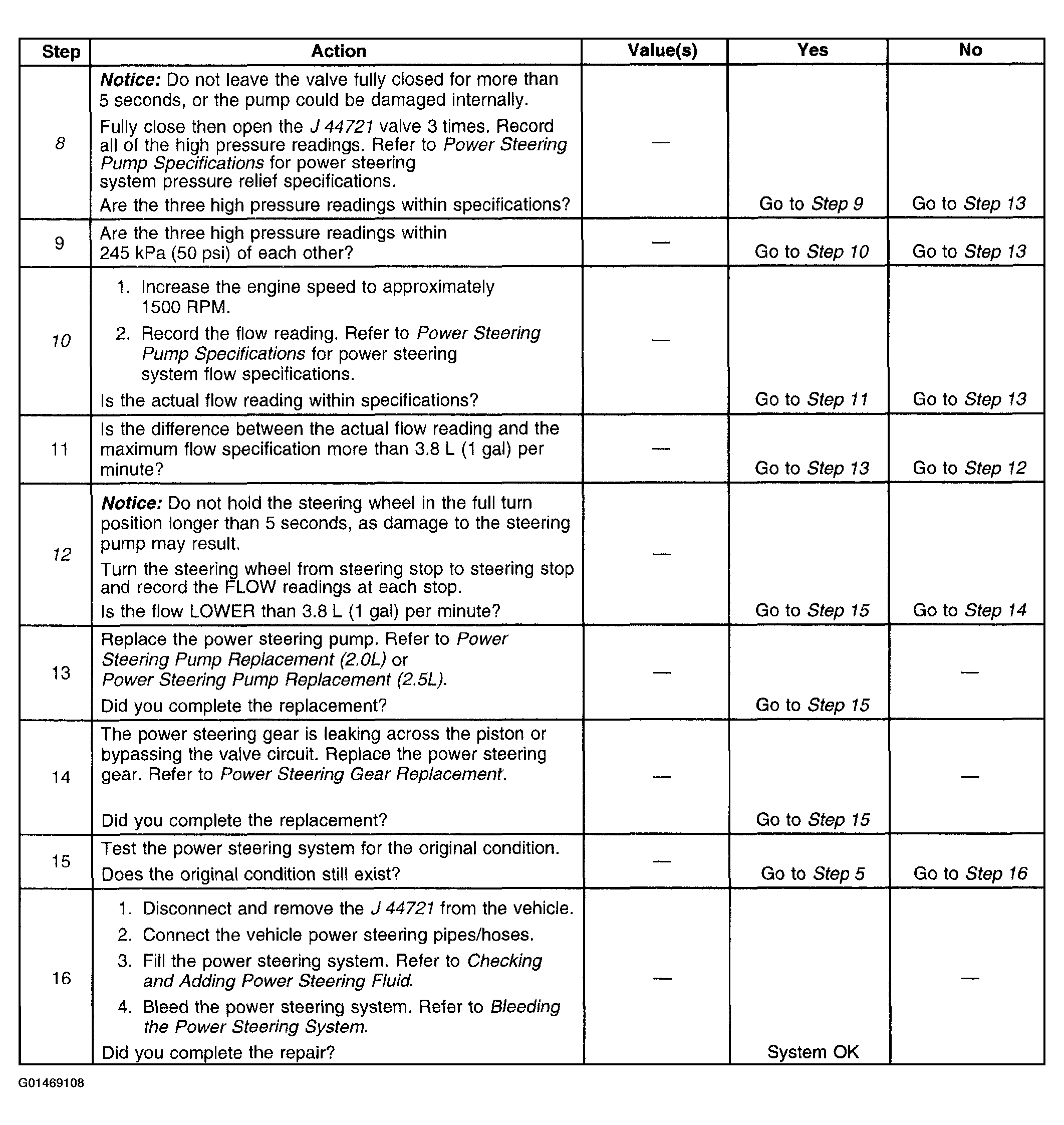

Fig 2: Testing Of Power Steering System (Steps 8-16)
G01469108Courtesy of GENERAL MOTORS CORP.
