Transmission Range Switch Connector End View

Fig 1: Transmission Range Switch

G01407409

Courtesy of GENERAL MOTORS CORP.

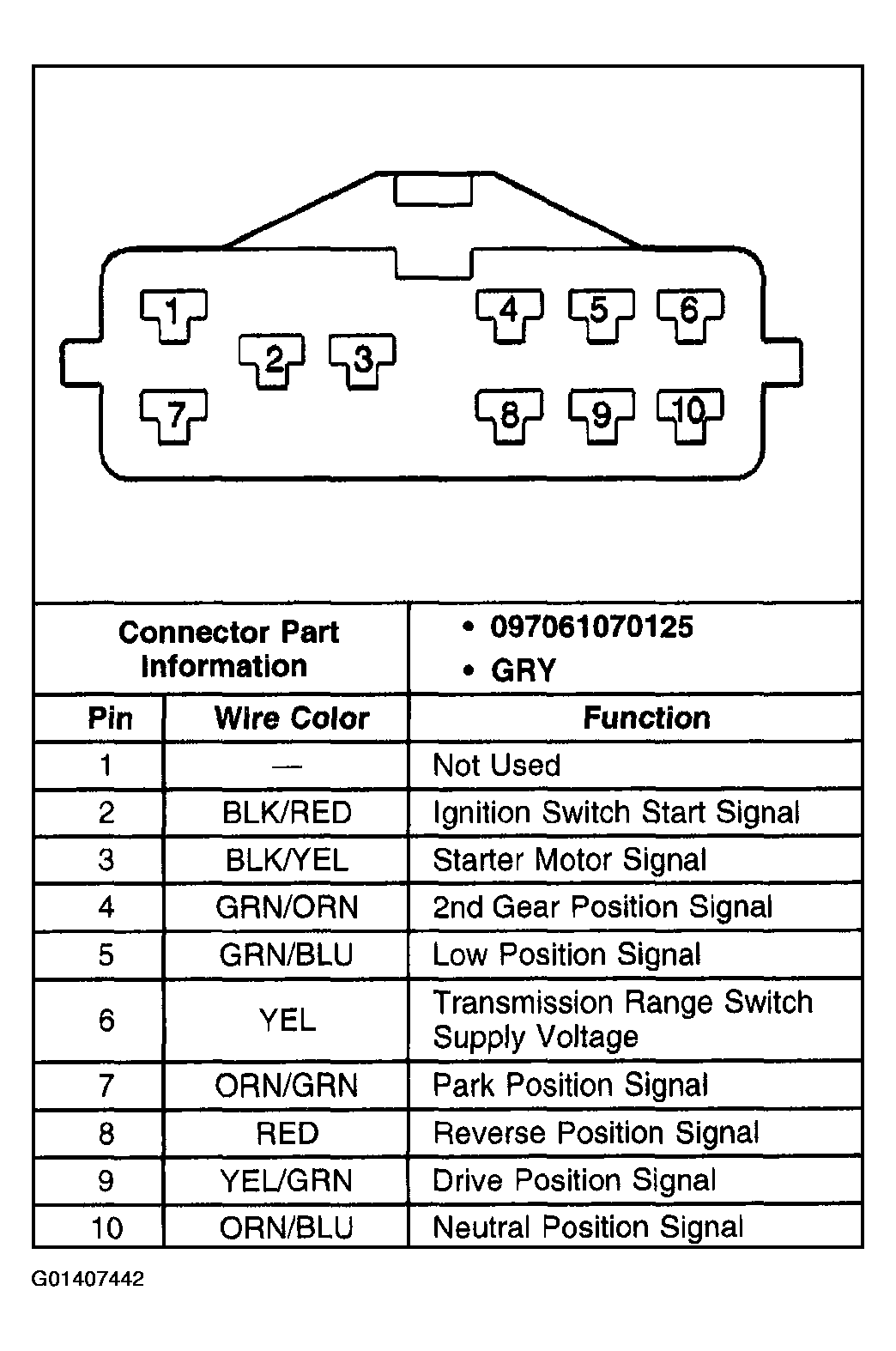

Fig 1: Transmission Range Switch

G01407442

Courtesy of GENERAL MOTORS CORP.
