Output Shaft Speed Sensor Connector End View

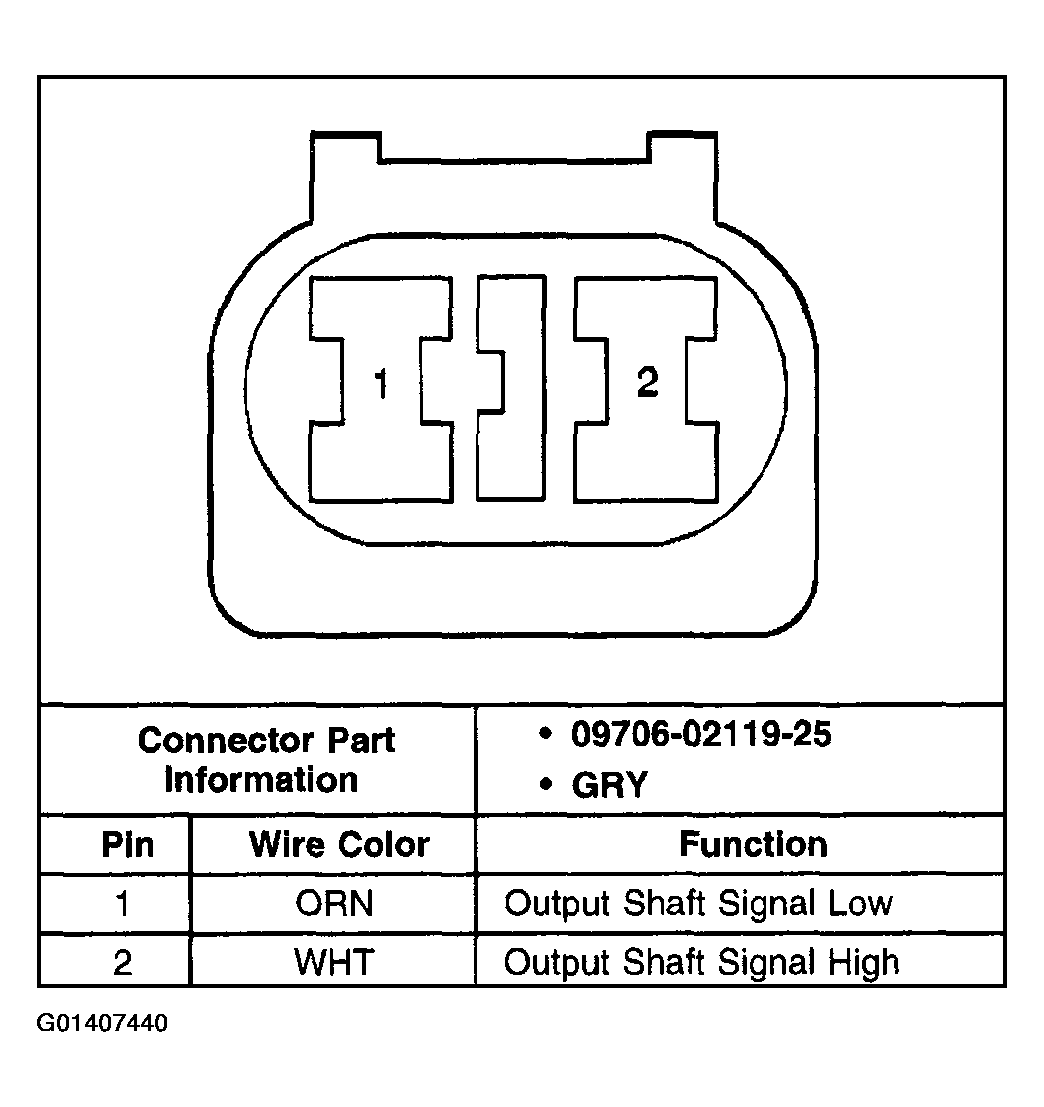

Fig 1: Output Shaft Speed Sensor

G01407440

Courtesy of GENERAL MOTORS CORP.
