Removal Procedure

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  1. Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  2. Remove the front side door window outer sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER .
  3. Raise the front side door window (1) slightly in order to gain access to the front side door window mounting screws (2).
  4. Remove the 2 screws (2) which secure the door window (1) to the front side door window regulator.
  5. Remove the door window (1) from the door.
  6. Remove the 2 retainers on the bottom of the door window (1), if necessary.

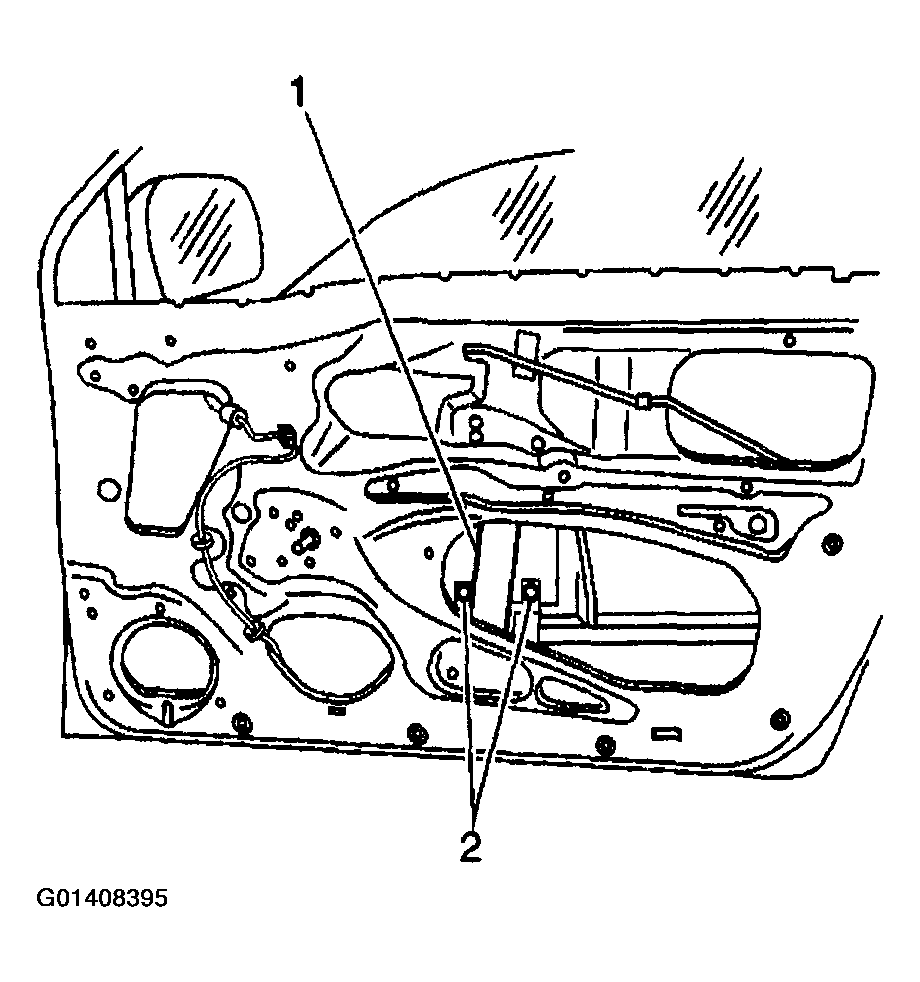

    Fig 1: Front Door Window
    G01408395Courtesy of GENERAL MOTORS CORP.
