Removal Procedure

  1. Remove the front side door window. Refer to WINDOW REPLACEMENT - FRONT DOOR .
  2. Disconnect the front side door window regulator electrical connector, if equipped.
  3. Remove the 4 bolts (1) and the 3 nuts (2) which secure the front side door window regulator.
  4. Remove the window regulator through the large opening in the inner portion of the front side door (3).

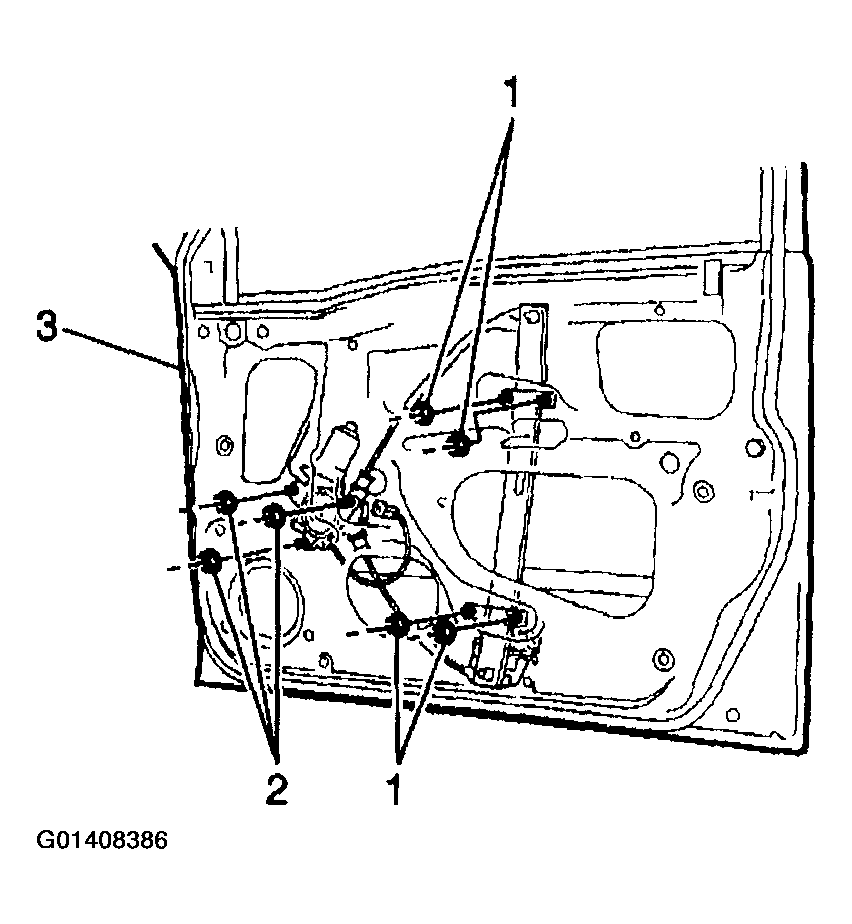

    Fig 1: Front Door Window Regulator
    G01408386Courtesy of GENERAL MOTORS CORP.
