Removal Procedure

  1. Use a cloth in order to pull off the snap ring which secures the window regulator handle (1).
  2. Remove the window regulator handle (1).

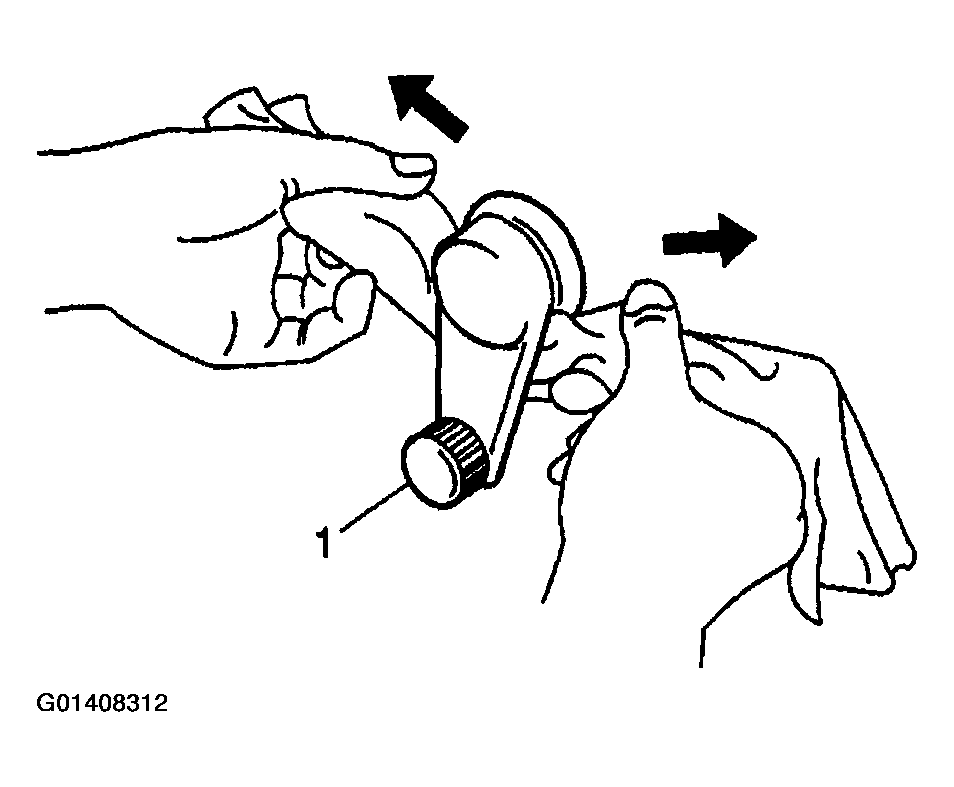

    Fig 1: Window Regulator Handle Snap Ring
    G01408312Courtesy of GENERAL MOTORS CORP.
