Removal Procedure

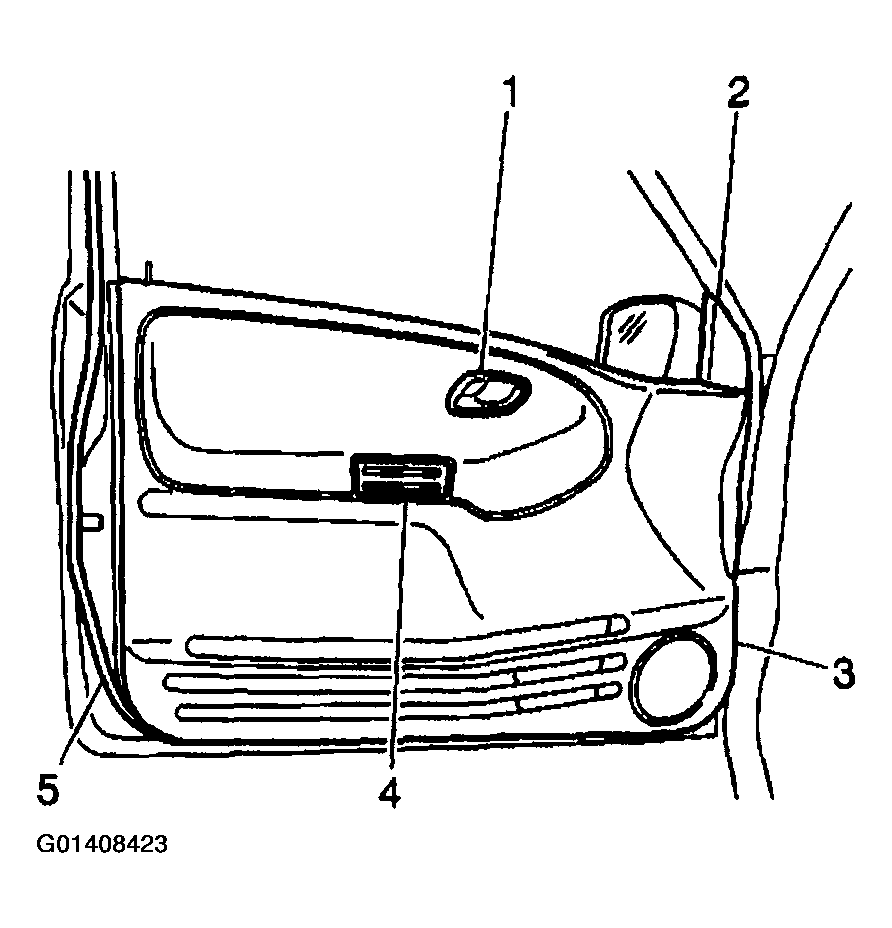

  1. Gently pry the outside rearview mirror opening cover (2) from the front side door.
    Fig 1: Front Side Door Outside Manual Rearview Mirror Opening Cover
    G01408423Courtesy of GENERAL MOTORS CORP.

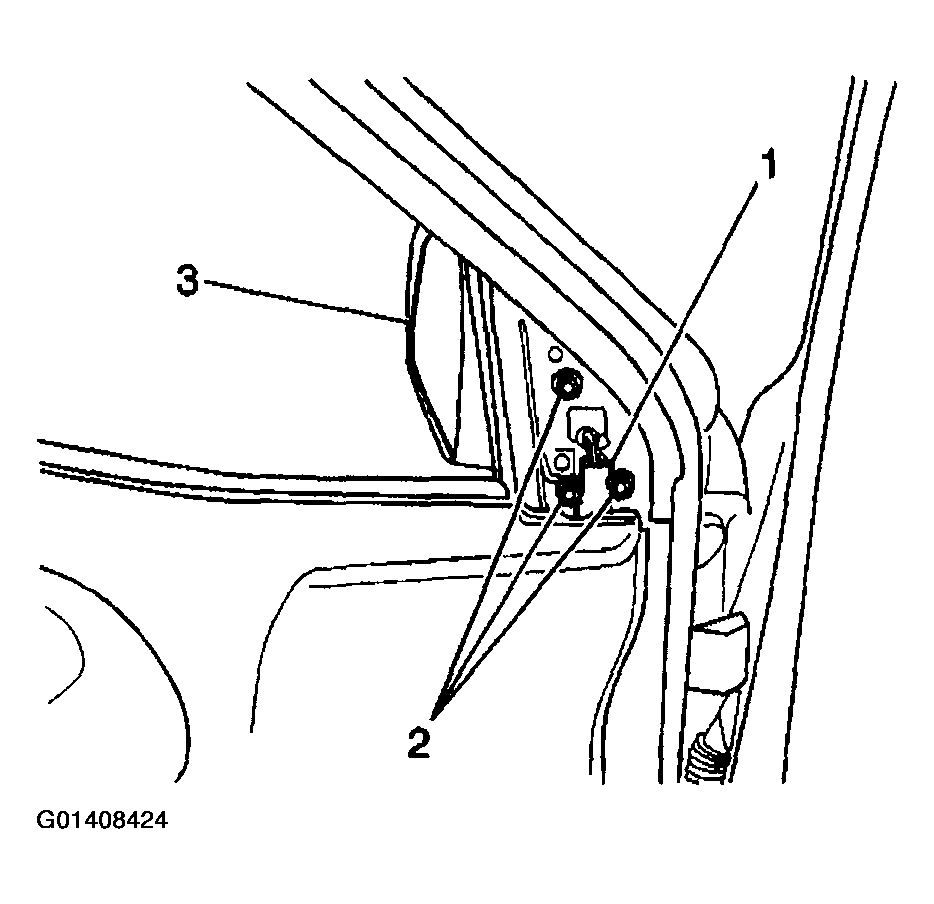

  2. Remove the 3 bolts (2) and outside rearview mirror (3) from the door.
    Fig 2: Front Side Door Outside Manual Rearview Mirror Bolts
    G01408424Courtesy of GENERAL MOTORS CORP.
