Removal Procedure

  1. Remove the front side door water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  2. Remove the front side door check pin (2) which secures the front side door check (3) to door jamb.
  3. Remove the following components from the door:
    • The 2 bolts (1)
    • The door check (3)

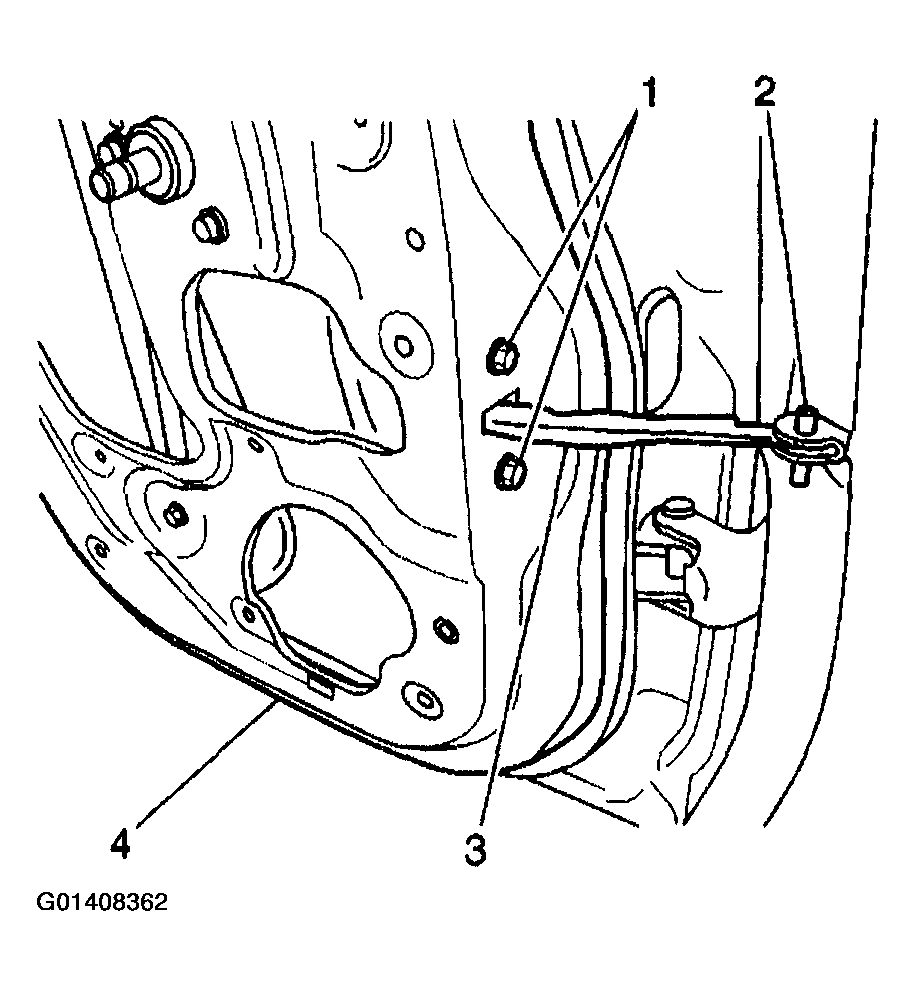

      Fig 1: Front Side Door Check Pin
      G01408362Courtesy of GENERAL MOTORS CORP.
