Cruise Control Schematics (Cruise Control Indicator, Cruise Control Servo, Cruise Control Main Switch, Cruise Control Mode Switch)

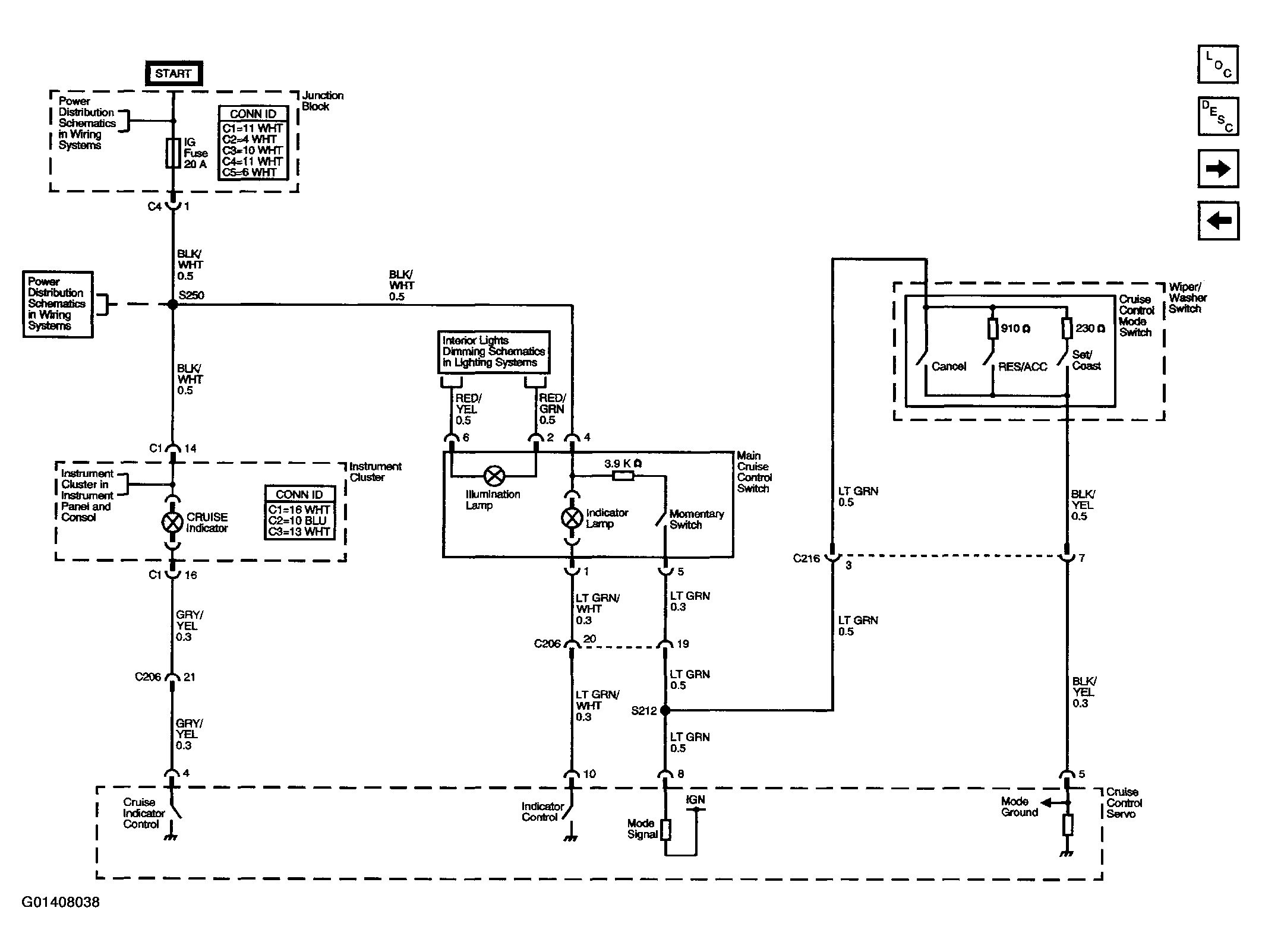

Fig 1: Cruise Control Schematics (Cruise Control Indicator, Cruise Control Servo, Cruise Control Main Switch, Cruise Control Mode Switch)
G01408038Courtesy of GENERAL MOTORS CORP.
