Steering Gear Disassembled View

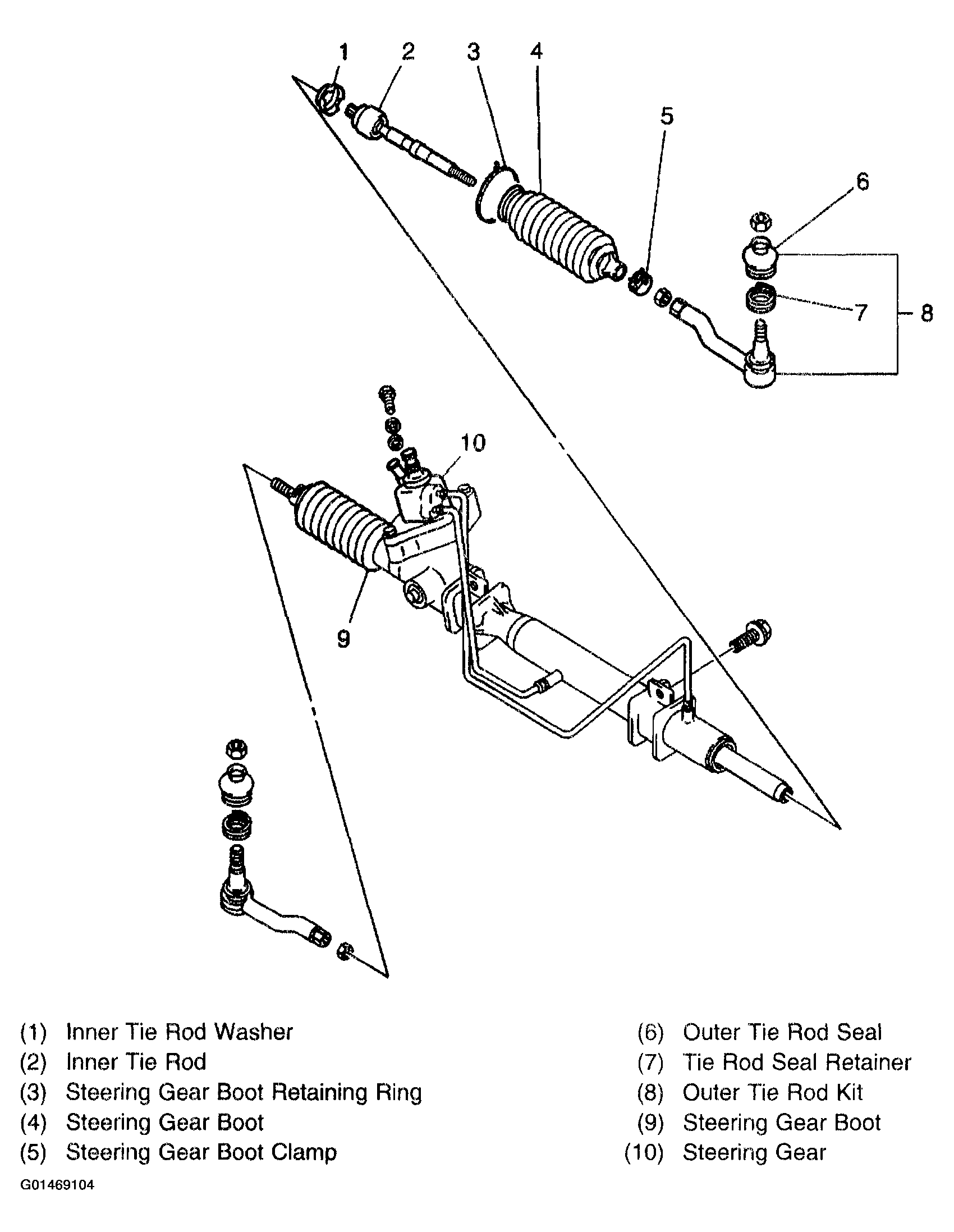

Fig 1: Disassembling View Of Steering Gear

G01469104

Courtesy of GENERAL MOTORS CORP.
