Data Link Connector (DLC) Connector End View

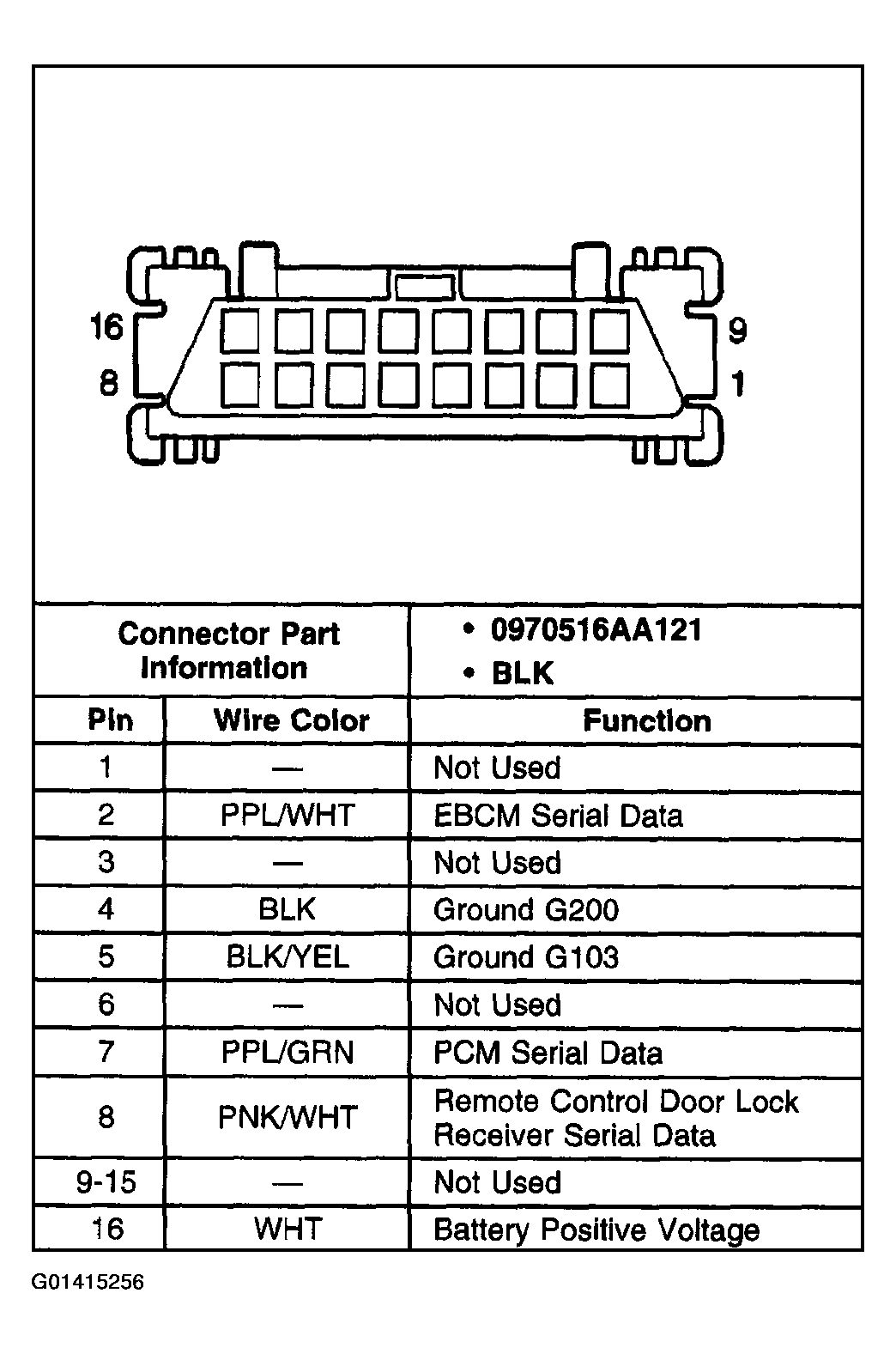

Fig 1: Data Link Connector (DLC)

G01415256

Courtesy of GENERAL MOTORS CORP.
