Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the O-ring union fitting (5) from the hydraulic pump housing assembly (1).
  2. Remove the O-ring seal (4) from the O-ring union fitting (5).
  3. Remove the control valve assembly (3).
  4. Remove the flow control spring (2).

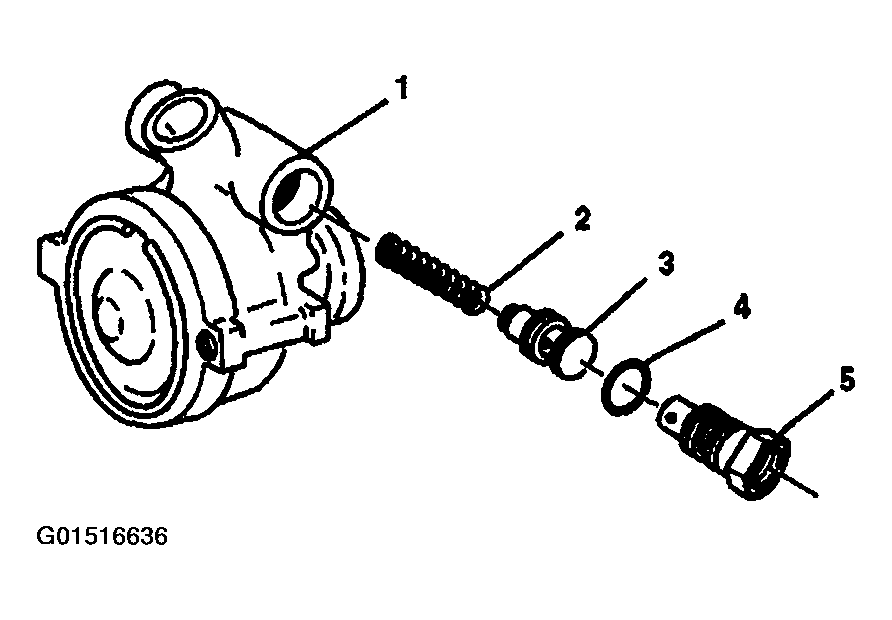

    Fig 1: Power Steering Pump Flow Control Valve
    G01516636Courtesy of GENERAL MOTORS CORP.
