Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Am and 2003 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
  1. Depress the brake pedal and insert the cruise control release switch into the bracket until the retainer is fully seated.
  2. Connect the electrical connector to the cruise control release switch.
  3. Adjust the cruise control release switch as needed. Refer to CLUTCH RELEASE SWITCH ADJUSTMENT  .
  4. Install the left instrument panel insulator.

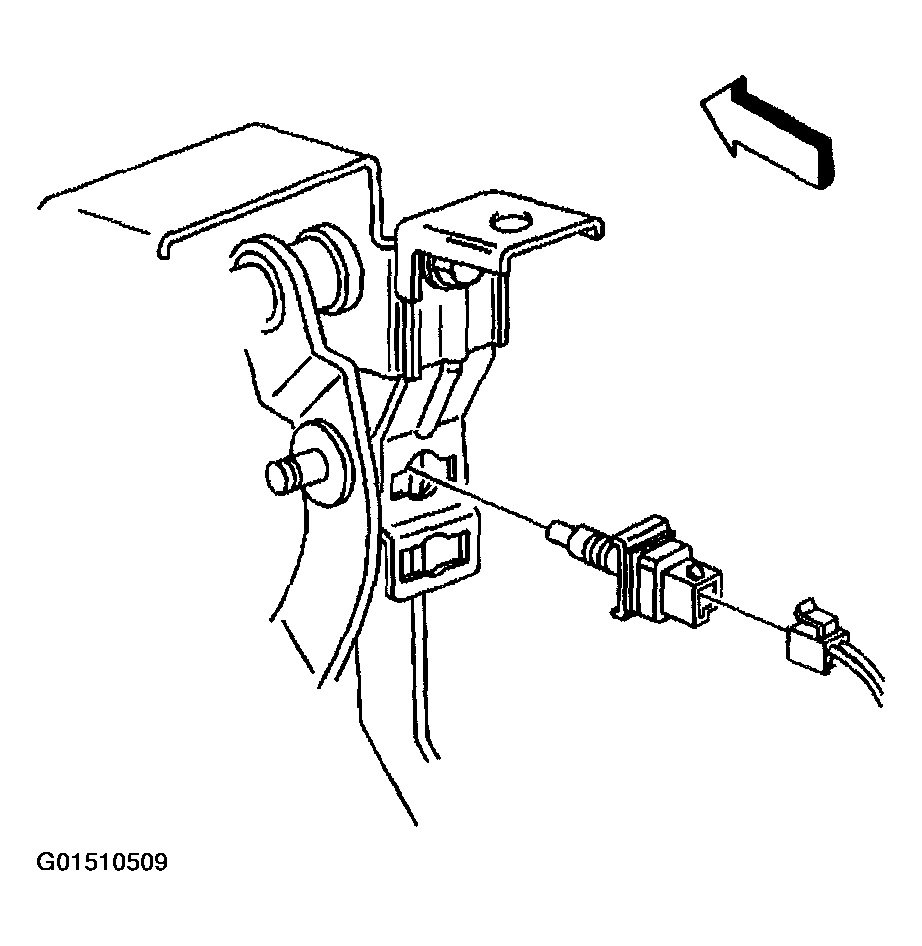

    Fig 1: Installing Clutch Release Switch
    G01510509Courtesy of GENERAL MOTORS CORP.
